ZyXEL NWA210AX

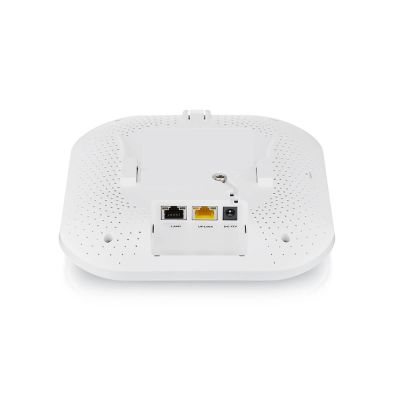

The Zyxel NWA210AX is a wall- and ceiling-mountable access point (AP).

In OEM web interface navigate to gear icon → System → SSH and enable SSH.
Log in via SSH (username/password are the same as for the web interface).
Run debug dual-image show.
Verify that output is Current Image num: 1.
If this is not the case (i.e. if the output is Current Image num: 0):
- a. Either flash a fresh version of factory firmware, or
- b. run debug dual-image set boot-image image1 and then run reboot.
Log in via SSH again and verify that output is Current Image num: 1.
Rename openwrt-qualcommax-ipq807x-zyxel_nwa210ax-squashfs-factory.bin to openwrt.bin to avoid upload errors in the OEM web interface.
Reopen OEM web interface, navigate to wrench icon → File Manager → Firmware Package and upload the bin file. Once the upgrade process is finished and OpenWrt has booted, the LED will light up green.

OpenWrt → Zyxel via ssh command zyxel-bootconfig-ipq807x set image1.
Zyxel → OpenWrt via ssh command debug dual-image set boot-image image0.

→ Basic configuration After flashing, proceed with this.
Set up your Internet connection, configure wireless, configure USB port, etc.

The default network configuration is:

Interface Name	Description	Default configuration
br-lan	LAN1 & UPLINK & WiFi	DHCP
lan1	LAN1, 1 Gbps	None
uplink	UPLINK, 2.5 Gbps	None
radio0	WiFi, 5 GHz	Disabled
radio1	WiFi, 2.4 GHz	Disabled

→ hardware.button on howto use and configure the hardware button(s). Here, we merely name the buttons, so we can use them in the above Howto.

The ZyXEL NWA210AX has the following buttons:

BUTTON	Event
Reset	reset

Serial connection parameters for ZyXEL NWA210AX	115200, 8N1, 3.3V

Unusually, this device has an externally accessible serial port which is 3.3V “logic level” UART (not RS232). This takes the form of standard 2.54mm (0.1 inch) spaced header pins, which can be used with 2.54mm “dupont” style female plugs.

Remove the soft plastic dust plug next to the Ethernet port. The pin assignments are:

Pin 1: 3.3V **OUTPUT** ("▲" is printed on the case next to this pin).
Pin 2: TX data from AP.
Pin 3: RX data to AP.
Pin 4: GND/reference.

As with all logic level ports, caution should be exercised when making connections; the connected electronic components could be damaged by incorrect connections, and/or electro static discharge (ESD). The 3.3V output pin should only be connected to adapters which require a voltage input from the target device - usually only (relatively rare) optically or magnetically isolated types - if in doubt, leave pin 1 unconnected.

See also port.serial for general information about serial port types, cables and adapters etc.

[ 0.000000] Booting Linux on physical CPU 0x0 [ 0.000000] Linux version 4.4.60 (jenkins@NT121055-PC84) (gcc version 5.2.0 (OpenWrt GCC 5.2.0 b3aeaa06b+r49254) ) #1 SMP PREEMPT Fri Jan 3 05:04:48 CST 2025 [ 0.000000] Boot CPU: AArch64 Processor [410fd034] [ 0.000000] Ignoring memory range 0x40000000 - 0x41000000 [ 0.000000] Machine: Qualcomm Technologies, Inc. IPQ807x/AP-AC02 [ 0.000000] efi: Getting EFI parameters from FDT: [ 0.000000] efi: UEFI not found. [ 0.000000] Reserved memory: OVERLAP DETECTED! [ 0.000000] wifi_dump@51100000 (0x0000000051100000--0x0000000051700000) overlaps with wigig_dump@51300000 (0x0000000051300000--0x0000000051700000) [ 0.000000] On node 0 totalpages: 228608 [ 0.000000] DMA zone: 3572 pages used for memmap [ 0.000000] DMA zone: 0 pages reserved [ 0.000000] DMA zone: 228608 pages, LIFO batch:31 [ 0.000000] psci: probing for conduit method from DT. [ 0.000000] psci: PSCIv1.0 detected in firmware. [ 0.000000] psci: Using standard PSCI v0.2 function IDs [ 0.000000] psci: MIGRATE_INFO_TYPE not supported. [ 0.000000] PERCPU: Embedded 15 pages/cpu @ffffffc03ef4b000 s20992 r8192 d32256 u61440 [ 0.000000] pcpu-alloc: s20992 r8192 d32256 u61440 alloc=15*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [ 0.000000] Detected VIPT I-cache on CPU0 [ 0.000000] CPU features: enabling workaround for ARM erratum 845719 [ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 225036 [ 0.000000] Kernel command line: console=ttyMSM0,115200n8 loglevel=0 bootImage=0 mtdoops.mtddev=disklog mtdoops.record_size=126976 mtdoops.dump_oops=0 ubi.mtd=rootfs root=mtd:ubi_rootfs rootfstype=squashfs rootwait swiotlb=1 coherent_pool=2M [ 0.000000] PID hash table entries: 4096 (order: 3, 32768 bytes) [ 0.000000] Dentry cache hash table entries: 131072 (order: 8, 1048576 bytes) [ 0.000000] Inode-cache hash table entries: 65536 (order: 7, 524288 bytes) [ 0.000000] software IO TLB [mem 0x7fe03000-0x7fe43000] (0MB) mapped at [ffffffc03ee03000-ffffffc03ee42fff] [ 0.000000] Memory: 886144K/914432K available (5452K kernel code, 636K rwdata, 2380K rodata, 236K init, 428K bss, 28288K reserved, 0K cma-reserved) [ 0.000000] Virtual kernel memory layout: [ 0.000000] vmalloc : 0xffffff8000000000 - 0xffffffbdbfff0000 ( 246 GB) [ 0.000000] vmemmap : 0xffffffbdc0000000 - 0xffffffbfc0000000 ( 8 GB maximum) [ 0.000000] 0xffffffbdc0040000 - 0xffffffbdc1000000 ( 15 MB actual) [ 0.000000] fixed : 0xffffffbffa7fd000 - 0xffffffbffac00000 ( 4108 KB) [ 0.000000] PCI I/O : 0xffffffbffae00000 - 0xffffffbffbe00000 ( 16 MB) [ 0.000000] modules : 0xffffffbffc000000 - 0xffffffc000000000 ( 64 MB) [ 0.000000] memory : 0xffffffc000000000 - 0xffffffc03f000000 ( 1008 MB) [ 0.000000] .init : 0xffffffc000828000 - 0xffffffc000863000 ( 236 KB) [ 0.000000] .text : 0xffffffc000080000 - 0xffffffc000828000 ( 7840 KB) [ 0.000000] .data : 0xffffffc000872000 - 0xffffffc000911000 ( 636 KB) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] Preemptible hierarchical RCU implementation. [ 0.000000] Build-time adjustment of leaf fanout to 64. [ 0.000000] NR_IRQS:64 nr_irqs:64 0 [ 0.000000] Architected cp15 timer(s) running at 19.20MHz (virt). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x46d987e47, max_idle_ns: 440795202767 ns [ 0.000006] sched_clock: 56 bits at 19MHz, resolution 52ns, wraps every 4398046511078ns [ 0.000458] Calibrating delay loop (skipped), value calculated using timer frequency.. 38.40 BogoMIPS (lpj=192000) [ 0.000470] pid_max: default: 32768 minimum: 301 [ 0.000564] Mount-cache hash table entries: 2048 (order: 2, 16384 bytes) [ 0.000574] Mountpoint-cache hash table entries: 2048 (order: 2, 16384 bytes) [ 0.001308] EFI services will not be available. [ 0.001337] ASID allocator initialised with 65536 entries [ 0.052213] MSM Memory Dump base table set up [ 0.052238] MSM Memory Dump apps data table set up [ 0.090095] Detected VIPT I-cache on CPU1 [ 0.090146] CPU1: Booted secondary processor [410fd034] [ 0.120074] Detected VIPT I-cache on CPU2 [ 0.120104] CPU2: Booted secondary processor [410fd034] [ 0.150100] Detected VIPT I-cache on CPU3 [ 0.150129] CPU3: Booted secondary processor [410fd034] [ 0.150179] Brought up 4 CPUs [ 0.150206] SMP: Total of 4 processors activated. [ 0.150216] CPU: All CPU(s) started at EL1 [ 0.150240] alternatives: patching kernel code [ 0.150721] devtmpfs: initialized [ 0.168515] DMI not present or invalid. [ 0.168769] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.168793] futex hash table entries: 1024 (order: 5, 131072 bytes) [ 0.169137] pinctrl core: initialized pinctrl subsystem [ 0.170154] NET: Registered protocol family 16 [ 0.200049] cpuidle: using governor ladder [ 0.230067] cpuidle: using governor menu [ 0.230288] NET: Registered protocol family 42 [ 0.230440] vdso: 2 pages (1 code @ ffffffc000879000, 1 data @ ffffffc000878000) [ 0.230471] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers. [ 0.231359] DMA: preallocated 2048 KiB pool for atomic allocations [ 0.231494] Read of property:soc_version_minor from node failed [ 0.231504] CPU: IPQ8071A, SoC Version: 2.0 [ 0.231941] IPC logging disabled [ 0.231947] IPC logging disabled [ 0.231952] IPC logging disabled [ 0.231956] IPC logging disabled [ 0.231961] IPC logging disabled [ 0.233895] gpiochip_add: registered GPIOs 0 to 69 on device: 1000000.pinctrl [ 0.233909] GPIO chip 1000000.pinctrl: created GPIO range 0->69 ==> 1000000.pinctrl PIN 0->69 [ 0.234754] Soc version is not 1, changing clock offsets [ 0.243563] irq: no irq domain found for /soc/smp2p-wcss/slave-kernel ! [ 0.245938] irq: no irq domain found for /soc/smp2p-wcss/slave-kernel ! [ 0.249303] sps:sps is ready. [ 0.254249] spmi spmi-0: PMIC Arb Version-2 (0x20010000) [ 0.260998] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 2 [ 0.301193] of_get_named_gpiod_flags: can't parse 'gpio' property of node '/soc/dummy-regulator@0[0]' [ 0.301406] of_get_named_gpiod_flags: can't parse 'gpio' property of node '/fixed-regulator@0[0]' [ 0.302087] pps_core: LinuxPPS API ver. 1 registered [ 0.302095] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it> [ 0.302123] PTP clock support registered [ 0.302280] dmi: Firmware registration failed. [ 0.303520] Advanced Linux Sound Architecture Driver Initialized. [ 0.304258] clocksource: Switched to clocksource arch_sys_counter [ 0.307810] NET: Registered protocol family 2 [ 0.308460] TCP established hash table entries: 8192 (order: 4, 65536 bytes) [ 0.308568] TCP bind hash table entries: 8192 (order: 5, 131072 bytes) [ 0.308762] TCP: Hash tables configured (established 8192 bind 8192) [ 0.308833] UDP hash table entries: 512 (order: 2, 16384 bytes) [ 0.308870] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes) [ 0.309053] NET: Registered protocol family 1 [ 0.309100] PCI: CLS 0 bytes, default 128 [ 0.309609] hw perfevents: enabled with armv8_cortex_a53 PMU driver, 7 counters available [ 0.319426] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.319445] jffs2: version 2.2 (NAND) (ZLIB) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 0.323069] Key type asymmetric registered [ 0.323086] Asymmetric key parser 'x509' registered [ 0.323117] io scheduler noop registered [ 0.323130] io scheduler deadline registered (default) [ 0.325204] qcom-pcie 20000000.pci: GPIO lookup for consumer perst [ 0.325215] qcom-pcie 20000000.pci: using device tree for GPIO lookup [ 0.325229] of_get_named_gpiod_flags: can't parse 'perst-gpios' property of node '/soc/pci@20000000[0]' [ 0.325249] of_get_named_gpiod_flags: parsed 'perst-gpio' property of node '/soc/pci@20000000[0]' - status (0) [ 0.325406] 20000000.pci supply vdda not found, using dummy regulator [ 0.325455] 20000000.pci supply vdda_phy not found, using dummy regulator [ 0.325491] 20000000.pci supply vdda_refclk not found, using dummy regulator [ 0.326114] PCI host bridge /soc/pci@20000000 ranges: [ 0.326143] IO 0x20200000..0x2020ffff -> 0x20200000 [ 0.326158] MEM 0x20220000..0x2fffffff -> 0x20220000 [ 1.475911] qcom-pcie 20000000.pci: phy link never came up [ 1.477469] qcom-pcie 20000000.pci: hostinit failed [ 1.477479] qcom-pcie 20000000.pci: cannot initialize host [ 1.477625] qcom-pcie: probe of 20000000.pci failed with error -110 [ 1.481929] msm_rpm_log_probe: OK [ 1.482241] msm-dcc b3000.dcc: DCC XPU is not specified [ 1.482595] msm-dcc b3000.dcc: jiffies_64: 0xffff8b63, cntvct_64: 0x7f4471c [ 1.482608] msm-dcc b3000.dcc: gcnt_hi: 0x00000000(0xffffff80005d6004) [ 1.482619] msm-dcc b3000.dcc: gcnt_lo: 0x07f4491f(0xffffff80005d6000) [ 1.483221] TZ SMMU State: SMMU Stage2 Enabled [ 1.483281] TZ Log : Will warn on Access Violation, as paniconaccessviolation is not set [ 1.484897] msm_serial 78b3000.serial: msm_serial: detected port #0 [ 1.484939] msm_serial 78b3000.serial: uartclk = 3686400 [ 1.484978] 78b3000.serial: ttyMSM0 at MMIO 0x78b3000 (irq = 78, base_baud = 230400) is a MSM [ 1.485002] msm_serial: console setup on port #0 [ 1.485439] console [ttyMSM0] enabled [ 1.485830] msm_serial: driver initialized [ 1.486103] msm_serial_hsl_init: driver initialized [ 1.575271] brd: module loaded [ 1.575914] spi_qup 78b5000.spi: IN:block:16, fifo:64, OUT:block:16, fifo:64 [ 1.577451] m25p80 spi32766.0: found w25q64dw, expected n25q128a11 [ 1.577467] m25p80 spi32766.0: w25q64dw (8192 Kbytes) [ 1.577560] 21 ofpart partitions found on MTD device spi32766.0 [ 1.577568] Creating 21 MTD partitions on "spi32766.0": [ 1.577578] 0x000000000000-0x000000050000 : "0:SBL1" [ 1.578341] 0x000000050000-0x000000060000 : "0:MIBIB" [ 1.589026] 0x000000060000-0x000000080000 : "0:BOOTCONFIG" [ 1.599719] 0x000000080000-0x0000000a0000 : "0:BOOTCONFIG1" [ 1.610417] 0x0000000a0000-0x000000220000 : "0:QSEE" [ 1.611117] 0x000000220000-0x0000003a0000 : "0:QSEE_1" [ 1.611797] 0x0000003a0000-0x0000003b0000 : "0:DEVCFG" [ 1.612476] 0x0000003b0000-0x0000003c0000 : "0:DEVCFG_1" [ 1.613171] 0x0000003c0000-0x0000003d0000 : "0:APDP" [ 1.613842] 0x0000003d0000-0x0000003e0000 : "0:APDP_1" [ 1.614538] 0x0000003e0000-0x000000420000 : "0:RPM" [ 1.625231] 0x000000420000-0x000000460000 : "0:RPM_1" [ 1.625909] 0x000000460000-0x000000470000 : "0:CDT" [ 1.636608] 0x000000470000-0x000000480000 : "0:CDT_1" [ 1.647305] 0x000000480000-0x000000490000 : "0:APPSBLENV" [ 1.647988] 0x000000490000-0x000000530000 : "0:APPSBL" [ 1.658679] 0x000000530000-0x0000005d0000 : "0:APPSBL_1" [ 1.659399] 0x0000005d0000-0x000000610000 : "0:ART" [ 1.660085] 0x000000610000-0x000000620000 : "mrd" [ 1.660756] 0x000000620000-0x000000630000 : "mrd_1" [ 1.671473] 0x000000630000-0x000000800000 : "conf" [ 1.673160] QPIC controller hw version Major:1, Minor:5 [ 1.673499] nand: device found, Manufacturer ID: 0xef, Chip ID: 0xaa [ 1.673507] nand: ONFI 10-Compliant Winbond W29N02GZ [ 1.673515] nand: 256 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64 [ 1.673562] 5 ofpart partitions found on MTD device qcom_nand.0 [ 1.673569] Creating 5 MTD partitions on "qcom_nand.0": [ 1.673579] 0x000000000000-0x000003c00000 : "rootfs" [ 1.722273] mtd: device 21 (rootfs) set to be root filesystem [ 1.722560] mtdsplit: no squashfs found in "rootfs" [ 1.722576] 0x000003c00000-0x000004400000 : "0:WIFIFW" [ 1.729660] 0x000004400000-0x000008000000 : "rootfs_1" [ 1.778105] 0x000008000000-0x000008800000 : "0:WIFIFW_1" [ 1.785240] 0x000008800000-0x000010000000 : "logs" [ 1.882421] libphy: Fixed MDIO Bus: probed [ 1.883152] libphy: qca_mdio: probed [ 1.883582] Atheros 8031/8033 ethernet 90000.mdio:01: GPIO lookup for consumer reset [ 1.883593] Atheros 8031/8033 ethernet 90000.mdio:01: using device tree for GPIO lookup [ 1.883606] of_get_named_gpiod_flags: can't parse 'reset-gpios' property of node '/soc/mdio@90000/ethernet-phy@0[0]' [ 1.883616] of_get_named_gpiod_flags: can't parse 'reset-gpio' property of node '/soc/mdio@90000/ethernet-phy@0[0]' [ 1.883626] Atheros 8031/8033 ethernet 90000.mdio:01: using lookup tables for GPIO lookup [ 1.883637] Atheros 8031/8033 ethernet 90000.mdio:01: lookup for GPIO reset failed [ 1.883979] qca-mdio 90000.mdio: qca-mdio driver was registered [ 1.884157] cnss: INFO: IPC Logging is disabled! [ 1.884464] Skip QCA8074V1 in V2 platform [ 1.884536] cnss[2]: INFO: Disabling regdb support for QCA8074v2 [ 1.884785] cnss[2]: INFO: Platform driver probed successfully. plat ffffffc03ce38018 tgt 0xfffe [ 1.885021] i2c /dev entries driver [ 1.914897] sdhci: Secure Digital Host Controller Interface driver [ 1.914908] sdhci: Copyright(c) Pierre Ossman [ 1.914920] sdhci-pltfm: SDHCI platform and OF driver helper [ 1.915183] of_get_named_gpiod_flags: can't parse 'enable-gpio' property of node '/soc/i2c@78ba000/lp5562@30[0]' [ 1.937968] lp5562 0-0030: internal clock used [ 1.940511] [ 1.940511] Version Rollback Feature Disabled [ 1.943245] remoteproc remoteproc0: releasing cd00000.qcom_q6v5_wcss [ 1.944518] SPMI VADC - Min ch: 0 Max ch: 15 [ 1.946383] of_graph_get_next_endpoint(): no port node found in /soc/csr@6001000 [ 1.946482] coresight-csr 6001000.csr: CSR initialized [ 1.946636] of_graph_get_next_endpoint(): no port node found in /soc/cti@6010000 [ 1.946812] of_graph_get_next_endpoint(): no port node found in /soc/cti@6011000 [ 1.946968] of_graph_get_next_endpoint(): no port node found in /soc/cti@6012000 [ 1.947120] of_graph_get_next_endpoint(): no port node found in /soc/cti@6013000 [ 1.947277] of_graph_get_next_endpoint(): no port node found in /soc/cti@6014000 [ 1.947428] of_graph_get_next_endpoint(): no port node found in /soc/cti@6015000 [ 1.947580] of_graph_get_next_endpoint(): no port node found in /soc/cti@6016000 [ 1.947735] of_graph_get_next_endpoint(): no port node found in /soc/cti@6017000 [ 1.947889] of_graph_get_next_endpoint(): no port node found in /soc/cti@6018000 [ 1.948046] of_graph_get_next_endpoint(): no port node found in /soc/cti@6019000 [ 1.948194] of_graph_get_next_endpoint(): no port node found in /soc/cti@601a000 [ 1.948351] of_graph_get_next_endpoint(): no port node found in /soc/cti@601b000 [ 1.948505] of_graph_get_next_endpoint(): no port node found in /soc/cti@601c000 [ 1.948658] of_graph_get_next_endpoint(): no port node found in /soc/cti@601d000 [ 1.948813] of_graph_get_next_endpoint(): no port node found in /soc/cti@601e000 [ 1.948961] of_graph_get_next_endpoint(): no port node found in /soc/cti@601f000 [ 1.949121] of_graph_get_next_endpoint(): no port node found in /soc/cti@6198000 [ 1.949283] of_graph_get_next_endpoint(): no port node found in /soc/cti@6199000 [ 1.949449] of_graph_get_next_endpoint(): no port node found in /soc/cti@619a000 [ 1.949616] of_graph_get_next_endpoint(): no port node found in /soc/cti@619b000 [ 1.949793] of_graph_get_next_endpoint(): no port node found in /soc/cti@610c000 [ 1.950126] sps_register_bam_device : unable to create IPC Logging 0 for bam 0x0000000006044000 [ 1.950135] sps_register_bam_device : unable to create IPC Logging 1 for bam 0x0000000006044000sps_register_bam_device : unable to create IPC Logging 2 for bam 0x0000000006044000 [ 1.950150] sps_register_bam_device : unable to create IPC Logging 3 for bam 0x0000000006044000sps_register_bam_device : unable to create IPC Logging 4 for bam 0x0000000006044000 [ 1.950165] sps:BAM 0x0000000006044000 is registered.<6>[ 1.950667] coresight-tmc 6028000.tmc: TMC initialized [ 1.951098] coresight-tmc 6027000.tmc: TMC initialized [ 1.951444] coresight-funnel 6021000.funnel: FUNNEL initialized [ 1.951681] coresight-funnel 6100000.funnel: FUNNEL initialized [ 1.951913] coresight-funnel 6120000.funnel: FUNNEL initialized [ 1.952150] coresight-funnel 6130000.funnel: FUNNEL initialized [ 1.952392] coresight-funnel 61a1000.funnel: FUNNEL initialized [ 1.953137] coresight-etm4x 619c000.etm: ETM 4.0 initialized [ 1.953612] coresight-etm4x 619d000.etm: ETM 4.0 initialized [ 1.954097] coresight-etm4x 619e000.etm: ETM 4.0 initialized [ 1.954626] coresight-etm4x 619f000.etm: ETM 4.0 initialized [ 1.954900] coresight-replicator-qcom 6026000.replicator: REPLICATOR 1.0 initialized [ 1.955310] coresight-stm 6002000.stm: STM initialized [ 1.956522] of_graph_get_next_endpoint(): no port node found in /soc/hwevent@6101000 [ 1.956629] coresight-hwevent 6101000.hwevent: Hardware Event driver initialized [ 1.959086] Netfilter messages via NETLINK v0.30. [ 1.959171] nf_conntrack version 0.5.0 (6923 buckets, 27692 max) [ 1.959649] nf_tables: (c) 2007-2009 Patrick McHardy <kaber@trash.net> [ 1.959680] nf_tables_compat: (c) 2012 Pablo Neira Ayuso <pablo@netfilter.org> [ 1.959878] gre: GRE over IPv4 demultiplexor driver [ 1.959891] ip_gre: GRE over IPv4 tunneling driver [ 1.960924] ip_tables: (C) 2000-2006 Netfilter Core Team [ 1.961783] NET: Registered protocol family 10 [ 1.962707] NET: Registered protocol family 17 [ 1.962756] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this. [ 1.962791] Bridge firewalling registered [ 1.962806] Ebtables v2.0 registered [ 1.962942] 8021q: 802.1Q VLAN Support v1.8 [ 1.974619] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 2 [ 1.974850] pmd9655_s3: supplied by e-smps1-reg [ 1.975014] cpr4_ipq807x_apss_read_fuse_data: apc_corner: speed bin = 0 [ 1.975023] cpr4_ipq807x_apss_read_fuse_data: apc_corner: CPR fusing revision = 1 [ 1.975032] cpr4_ipq807x_apss_read_fuse_data: apc_corner: CPR misc fuse value = 0 [ 1.975054] cpr4_ipq807x_apss_read_fuse_data: apc_corner: Voltage boost fuse config = 0 boost = disable [ 1.975113] cpr3_mem_acc_init: apc: not using memory accelerator regulator [ 1.975124] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused SVS: open-loop= 704000 uV [ 1.975132] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused NOM: open-loop= 808000 uV [ 1.975187] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused SVS: quot[ 7]= 716, quot_offset[ 7]= 0 [ 1.975196] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused NOM: quot[ 7]= 911, quot_offset[ 7]= 195 [ 1.975308] cpr3_regulator_init_ctrl: apc: Default CPR mode = closed-loop [ 1.976093] global timer is null [ 1.976523] cpufreq: cpufreq_online: CPU0: Running at unlisted freq: 800000 KHz [ 1.976644] cpufreq: cpufreq_online: CPU0: Unlisted initial frequency changed to: 1017600 KHz [ 1.978760] qcom-q6v5-wcss-pil cd00000.qcom_q6v5_wcss: ssr registeration success qcom_q6v5_wcss [ 1.978814] remoteproc remoteproc0: cd00000.qcom_q6v5_wcss is available [ 1.979096] ubi0: attaching mtd21 [ 2.179995] random: nonblocking pool is initialized [ 2.266640] ubi0: scanning is finished [ 2.273223] ubi0: attached mtd21 (name "rootfs", size 60 MiB) [ 2.273229] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 2.273234] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 2.273238] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 2.273242] ubi0: good PEBs: 480, bad PEBs: 0, corrupted PEBs: 0 [ 2.273247] ubi0: user volume: 4, internal volumes: 1, max. volumes count: 128 [ 2.273252] ubi0: max/mean erase counter: 15/7, WL threshold: 4096, image sequence number: 877693598 [ 2.273257] ubi0: available PEBs: 0, total reserved PEBs: 480, PEBs reserved for bad PEB handling: 40 [ 2.273270] ubi0: background thread "ubi_bgt0d" started, PID 118 [ 2.275160] hctosys: unable to open rtc device (rtc0) [ 2.282075] pmd9655_ldo11: disabling [ 2.282588] ALSA device list: [ 2.282593] No soundcards found. [ 2.284945] VFS: Mounted root (squashfs filesystem) readonly on device 31:27. [ 2.286546] devtmpfs: mounted [ 2.286667] Freeing unused kernel memory: 236K (ffffffc000828000 - ffffffc000863000) [ 2.286692] Freeing alternatives memory: 44K (ffffffc000863000 - ffffffc00086e000) [ 7.892859] Starting netlink on family name=ETH_GENL [ 7.913046] ubi1: attaching mtd25 [ 8.503361] ubi1: scanning is finished [ 8.510688] ubi1: attached mtd25 (name "logs", size 120 MiB) [ 8.510701] ubi1: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 8.510706] ubi1: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 8.510711] ubi1: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 8.510716] ubi1: good PEBs: 960, bad PEBs: 0, corrupted PEBs: 0 [ 8.510720] ubi1: user volume: 4, internal volumes: 1, max. volumes count: 128 [ 8.510725] ubi1: max/mean erase counter: 6/4, WL threshold: 4096, image sequence number: 284862793 [ 8.510730] ubi1: available PEBs: 0, total reserved PEBs: 960, PEBs reserved for bad PEB handling: 40 [ 8.510805] ubi1: background thread "ubi_bgt1d" started, PID 754 [ 8.511408] mtdoops: ready 1, 2 (no erase) [ 8.511415] mtdoops: Attached to MTD device 30 [ 8.538644] init kernel log netlink done [ 8.822244] ssdk_switch_device_num_init[1167]:INFO:ess-switch dts node number: 1 [ 8.822305] ssdk_dt_get_switch_node[978]:INFO:ess-switch DT exist! [ 8.822319] ssdk_dt_parse_access_mode[864]:INFO:switch_access_mode: local bus [ 8.822325] ssdk_dt_parse_access_mode[877]:INFO:switchreg_base_addr: 0x3a000000 [ 8.822329] ssdk_dt_parse_access_mode[878]:INFO:switchreg_size: 0x1000000 [ 8.822334] ssdk_dt_parse_mac_mode[296]:INFO:mac mode = 0x8 [ 8.822339] ssdk_dt_parse_mac_mode[305]:INFO:mac mode1 = 0xf [ 8.822344] ssdk_dt_parse_mac_mode[314]:INFO:mac mode2 = 0xff [ 8.822368] ssdk_dt_parse_phy_info[660]:INFO:[PORT 5] port_mac_sel = QGMAC_PORT [ 8.822376] ssdk_dt_parse_phy_info[660]:INFO:[PORT 6] port_mac_sel = QGMAC_PORT [ 8.822399] ssdk_dt_parse_uniphy[333]:INFO:ess-uniphy DT exist! [ 8.822688] ssdk_plat_init start [ 8.896892] ssdk_gcc_clock_init[1044]:INFO:SSDK gcc clock init successfully! [ 8.897112] ssdk_probe[2028]:INFO:ess_rst doesn't exist! [ 8.897880] HPPE initializing... [ 8.897996] qca803x_phy_api_ops_init[2174]:INFO:qca probe qca803x phy driver succeeded! [ 8.898062] qca808x_phy_api_ops_init[2208]:INFO:qca probe qca808x phy driver succeeded! [ 8.898965] qca808x_ptp_register[1407]:INFO:qca808x ptp clock registered [ 8.899012] regi_init[3583]:INFO:Initializing HPPE!! [ 9.114310] ssdk_ppe_reset_init[1276]:INFO:ppe reset successfully! [ 9.118035] qca_hppe_portctrl_hw_init[110]:INFO:Hawkeye PPE port initializing [ 9.159431] cfg80211: World regulatory domain updated: [ 9.159443] cfg80211: DFS Master region: unset [ 9.159447] cfg80211: (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp), (dfs_cac_time) [ 9.159455] cfg80211: (2402000 KHz - 2472000 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A) [ 9.159462] cfg80211: (2457000 KHz - 2482000 KHz @ 20000 KHz, 92000 KHz AUTO), (N/A, 2000 mBm), (N/A) [ 9.159467] cfg80211: (2474000 KHz - 2494000 KHz @ 20000 KHz), (N/A, 2000 mBm), (N/A) [ 9.159472] cfg80211: (5170000 KHz - 5250000 KHz @ 80000 KHz, 160000 KHz AUTO), (N/A, 2000 mBm), (N/A) [ 9.159478] cfg80211: (5250000 KHz - 5330000 KHz @ 80000 KHz, 160000 KHz AUTO), (N/A, 2000 mBm), (0 s) [ 9.159484] cfg80211: (5490000 KHz - 5730000 KHz @ 160000 KHz), (N/A, 2000 mBm), (0 s) [ 9.159489] cfg80211: (5735000 KHz - 5835000 KHz @ 80000 KHz), (N/A, 2000 mBm), (N/A) [ 9.159494] cfg80211: (57240000 KHz - 63720000 KHz @ 2160000 KHz), (N/A, 0 mBm), (N/A) [ 9.189749] ntfs: driver 2.1.32 [Flags: R/O MODULE]. [ 9.267525] Initializing XFRM netlink socket [ 9.287972] NET: Registered protocol family 15 [ 9.318619] tun: Universal TUN/TAP device driver, 1.6 [ 9.318630] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com> [ 11.381344] ssdk_switch_register[1722]:INFO:Chip version 0x1500 [ 11.381381] qca_link_polling_select[1318]:INFO:link-polling-required node does not exist [ 11.381386] ssdk_switch_register[1748]:INFO:polling is selected [ 11.381394] regi_init[3587]:INFO:Initializing HPPE Done!! [ 11.381477] regi_init[3647]:INFO:qca-ssdk module init succeeded! [ 11.382650] EDMA ver 1 hw init [ 11.382895] EDMA HW Reset completed succesfully [ 11.382948] Num rings - TxDesc:1 (23-23) TxCmpl:1 (7-7) [ 11.382952] RxDesc:1 (15-15) RxFill:1 (7-7) [ 11.383568] GMAC5(ffffffc03b27a880) Invalid MAC@ - using da:4e:33:6e:67:4a [ 11.585559] GMAC1(ffffffc03ace7880) Invalid MAC@ - using 82:18:75:3f:84:22 [ 11.665207] ********************************************************** [ 11.665218] * NSS Data Plane driver [ 11.665222] ********************************************************** [ 11.912938] l2tp_core: L2TP core driver, V2.0 [ 11.920133] l2tp_netlink: L2TP netlink interface [ 11.938582] nss_driver - fw of size 738908 bytes copied to load addr: 40000000, nss_id : 0 [ 11.940794] Supported Frequencies - [ 11.940808] 187.2 MHz 748.8 MHz [ 11.940816] 1.4976 GHz <1>[ 11.940819] [ 11.940944] ffffffbffc604080: set sdma ffffffc03c94c800 [ 11.941067] ffffffbffc604080: meminfo init succeed [ 11.981654] node size 2 # items 4 [ 11.981668] memory: 40000000 1073741824 (avl 922034176) items 4 active_cores 2 [ 11.981678] addr/size storage words 2 2 # words 4 in DTS, ddr size 1000000 [ 11.981690] ffffffbffc604080: nss core 0 booted successfully [ 11.995554] nss_driver - fw of size 302036 bytes copied to load addr: 40800000, nss_id : 1 [ 11.996566] Supported Frequencies - [ 11.996572] 187.2 MHz 748.8 MHz [ 11.996578] 1.4976 GHz <1>[ 11.996581] [ 11.996695] ffffffbffc60b000: set sdma ffffffc03b19e200 [ 11.996768] ffffffbffc60b000: meminfo init succeed [ 12.010567] node size 2 # items 4 [ 12.010583] memory: 40000000 1073741824 (avl 922337280) items 4 active_cores 2 [ 12.010594] addr/size storage words 2 2 # words 4 in DTS, ddr size 1000000 [ 12.010612] ffffffbffc60b000: nss core 1 booted successfully [ 12.013024] SCSI subsystem initialized [ 12.013888] PPP generic driver version 2.4.2 [ 12.046068] NET: Registered protocol family 24 [ 12.047118] PPTP driver version 0.8.5 [ 12.048599] QCA multicast snooping installed successfully [ 12.056386] libata version 3.00 loaded. [ 12.072020] Ethernet Channel Bonding Driver: v3.7.1 (April 27, 2011) [ 12.077064] l2tp_ppp: PPPoL2TP kernel driver, V2.0 [ 12.210607] ECM init [ 12.210673] ECM database jhash random seed: 0xba978595 [ 12.211787] ip6_tables: (C) 2000-2006 Netfilter Core Team [ 12.225703] ECM init complete [ 12.305733] ip_set: protocol 6 [ 12.599214] <NSS-CRYPTO>:module loaded Build_ID - 01/03/25, 05:10:23 SoC=ipq807x_64 [ 12.631588] nss-macsec0 DT exist! [ 12.631708] nss-macsec1 DT exist! [ 12.631816] cannot find nss-macsec2 node [ 12.631853] nss_macsec init success [ 12.853419] u32 classifier [ 12.853428] input device check on [ 12.853431] Actions configured [ 12.885033] Mirror/redirect action on [ 13.152494] fuse init (API version 7.23) [ 13.171225] arp_tables: (C) 2002 David S. Miller [ 13.213534] daas: module license 'Proprietary' taints kernel. [ 13.213544] Disabling lock debugging due to kernel taint [ 13.269410] e1000e: Intel(R) PRO/1000 Network Driver - 3.2.6-k [ 13.269422] e1000e: Copyright(c) 1999 - 2015 Intel Corporation. [ 13.455207] xt_time: kernel timezone is -0000 [ 13.804797] -->mesh_dvlan_init()<-- [ 13.839941] PPP MPPE Compression module registered [ 14.118619] Starting netlink on family name=ZYLED_GENL [ 14.118661] platform_support_init: insert module [ 14.119499] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/apd_dc_in[0]' - status (0) [ 14.119518] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/poe_status[0]' - status (0) [ 14.119529] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/ant_dir[0]' - status (0) [ 14.119542] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/rst_mb[0]' - status (0) [ 14.119554] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/btn_rst_mb[0]' - status (0) [ 14.119564] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/board_info_1[0]' - status (0) [ 14.119576] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/board_info_2[0]' - status (0) [ 14.119586] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/phy2_rst[0]' - status (0) [ 14.119599] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/phy1_rst[0]' - status (0) [ 14.119611] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/wd_en[0]' - status (0) [ 14.119623] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/wdi[0]' - status (0) [ 14.119635] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/wd_flag[0]' - status (0) [ 14.119645] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/led_locator[0]' - status (0) [ 14.119655] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/led_power[0]' - status (0) [ 14.119665] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/led_sys[0]' - status (0) [ 14.119673] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/zy_platform_gpios/led_mgmt[0]' - status (0) [ 14.208139] Selecting ethernet port setting with index 5 for nwa210ax [ 14.242515] ip_reputation_init [ 14.242525] [init ip reputation] minor:255, name:IR_DEV [ 14.999877] jffs2: notice: (2198) jffs2_build_xattr_subsystem: complete building xattr subsystem, 0 of xdatum (0 unchecked, 0 orphan) and 0 of xref (0 dead, 0 orphan) found. [ 15.091295] UBIFS (ubi1:2): background thread "ubifs_bgt1_2" started, PID 2228 [ 15.156966] UBIFS (ubi1:2): UBIFS: mounted UBI device 1, volume 2, name "diaglog" [ 15.156979] UBIFS (ubi1:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 15.156986] UBIFS (ubi1:2): FS size: 29204480 bytes (27 MiB, 230 LEBs), journal size 1523712 bytes (1 MiB, 12 LEBs) [ 15.156991] UBIFS (ubi1:2): reserved for root: 1379399 bytes (1347 KiB) [ 15.157000] UBIFS (ubi1:2): media format: w4/r0 (latest is w4/r0), UUID 6286B57B-CD8D-4898-B044-7FFDE83D3D13, small LPT model [ 15.161161] UBIFS (ubi1:3): background thread "ubifs_bgt1_3" started, PID 2230 [ 15.227865] UBIFS (ubi1:3): UBIFS: mounted UBI device 1, volume 3, name "reserved" [ 15.227879] UBIFS (ubi1:3): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 15.227885] UBIFS (ubi1:3): FS size: 66154496 bytes (63 MiB, 521 LEBs), journal size 3301376 bytes (3 MiB, 26 LEBs) [ 15.227890] UBIFS (ubi1:3): reserved for root: 3124639 bytes (3051 KiB) [ 15.227899] UBIFS (ubi1:3): media format: w4/r0 (latest is w4/r0), UUID B57247FE-49EA-4C24-ACFB-805A34E34F0D, small LPT model [ 15.950496] UBIFS (ubi1:1): background thread "ubifs_bgt1_1" started, PID 2399 [ 16.029537] UBIFS (ubi1:1): UBIFS: mounted UBI device 1, volume 1, name "coredump" [ 16.029551] UBIFS (ubi1:1): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 16.029558] UBIFS (ubi1:1): FS size: 5586944 bytes (5 MiB, 44 LEBs), journal size 1015809 bytes (0 MiB, 6 LEBs) [ 16.029563] UBIFS (ubi1:1): reserved for root: 263884 bytes (257 KiB) [ 16.029571] UBIFS (ubi1:1): media format: w4/r0 (latest is w4/r0), UUID F1EBA85F-4BEB-4241-8BEB-9C94B724F7F1, small LPT model [ 16.374705] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready [ 19.584307] nss-dp 3a001800.dp1 eth0: PHY Link up speed: 1000 [ 19.584373] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready [ 22.784134] ip_local_port_range: prefer different parity for start/end values. [ 26.584313] nss-dp 3a001800.dp1 eth0: PHY Link up speed: 1000 [ 27.584448] nss-dp 3a001800.dp1 eth0: PHY Link is down [ 32.646833] ECM exit [ 32.834687] ECM exit complete [ 34.413673] ubi2: attaching mtd22 [ 34.453916] ubi2: scanning is finished [ 34.460530] ubi2: attached mtd22 (name "0:WIFIFW", size 8 MiB) [ 34.460541] ubi2: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 34.460547] ubi2: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 34.460553] ubi2: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 34.460559] ubi2: good PEBs: 64, bad PEBs: 0, corrupted PEBs: 0 [ 34.460566] ubi2: user volume: 1, internal volumes: 1, max. volumes count: 128 [ 34.460573] ubi2: max/mean erase counter: 6/6, WL threshold: 4096, image sequence number: 1323432315 [ 34.460579] ubi2: available PEBs: 1, total reserved PEBs: 63, PEBs reserved for bad PEB handling: 40 [ 34.460596] ubi2: background thread "ubi_bgt2d" started, PID 3210 [ 35.955015] wlan: [3291:I:RPTR] qca_multi_link_init_module: [ 35.955015] ******QCA Repeater Initialization Done*********** [ 35.955015] [ 35.959154] wlan: [3291:I:ANY] qdf_ini_parse: INI values read: 72 [ 35.959166] wlan: [3291:I:ANY] qdf_ini_parse: INI file parse successful [ 35.962980] wlan: [3291:I:ANY] qdf_ini_parse: INI values read: 56 [ 35.962990] wlan: [3291:I:ANY] qdf_ini_parse: INI file parse successful [ 37.254449] cnss[2]: INFO: Setting daemon_support=1 for instance_id 0x2 [ 37.357635] cnss[2]: INFO: Setting cold_boot_support=1 for instance_id 0x2 [ 38.073879] wlan: [3705:I:ANY] =======ol_if_register_wifi3_0========== [ 38.073879] [ 38.073905] wlan: [3705:I:ANY] osif_nss_register_module: NSS wifi ops registered for target_type:1 with soc_ops:ffffffbffd685dd8 [ 38.073936] wlan: [3705:I:ANY] ol_ath_wifi_ssr: ol_ath_wifi_ssr: SSR event 2 bus_type 1 [ 38.073961] remoteproc remoteproc0: powering up cd00000.qcom_q6v5_wcss [ 38.094357] remoteproc remoteproc0: Booting fw image IPQ8074/q6_fw.mdt, size 668 [ 39.291410] Subsystem error monitoring/handling services are up [ 39.291752] remoteproc remoteproc0: remote processor cd00000.qcom_q6v5_wcss is now up [ 39.291813] wlan: [3705:I:ANY] ol_ath_wifi_ssr: ol_ath_wifi_ssr: SSR event 3 bus_type 1 [ 39.291832] cnss[2]: INFO: Waiting for FW ready. Device: 0xfffe, FW ready timeout: 15 seconds [ 39.292187] rpmsg_dev_probe: No pm domain [ 39.292407] rpmsg_dev_probe: No pm domain [ 39.293432] cnss[2]: INFO: QMI WLFW service connected, state: 0x1 [ 39.295001] cnss[2]: INFO: device_id : 65534 mem mode : [0] [ 39.295020] cnss[2]: INFO: platform name: Qualcomm Technologies, Inc. IPQ807x/AP-AC02 [ 39.295258] cnss[2]: ERR: WARNING: More memory is reserved. Reserved size 0x5f00000, Requested size 0x5dec000. [ 39.295993] cnss[2]: INFO: Target capability: chip_id: 0x0, chip_family: 0x0, board_id: 0xff, soc_id: 0xffffffff, fw_version: 0x260884a5, fw_build_timestamp: 2023-05-17 07:53, otp_version: 0x0 eeprom_caldata_read_timeout 0s [ 39.296013] cnss[2]: INFO: Boardid from dts:292,FW:ff [ 39.296020] cnss[2]: INFO: ZYXEL Replace BDF filename IPQ8074/bdwlan.b292 with IPQ8074/bdwlan.bin [ 39.302805] cnss[2]: INFO: BDF location : 0x4b0c0000 [ 39.302821] cnss[2]: INFO: BDF IPQ8074/bdwlan.bin size 131072 [ 39.303629] cnss[2]: INFO: per device BDF location : 0x4b0e0000 [ 39.303728] cnss[2]: INFO: CALDATA IPQ8074/caldata.bin size 131072 offset 0x20000 [ 39.394270] cnss[2]: INFO: FW ready received for device 0xfffe [ 39.395759] wlan: [3705:I:ANY] pld_ahb_wlan_enable: cnss_mode: Cold boot calibration [ 39.395769] cnss[2]: INFO: Sending mode message, mode: COLDBOOT CALIBRATION(7), state: 0xf [ 39.488106] wlan: [3705:I:ANY] init_ath_pci_3_0: 6ath_ol_pci_wifi3.0 : (Atheros/multi-bss) [ 39.492038] wlan: [3711:I:ANY] ol_ath_wifi_ssr: ol_ath_wifi_ssr: SSR event 0 bus_type 1 [ 39.492067] cnss[2]: INFO: Coldboot Calbration wait started for Device: 0xfffe, timeout: 60 seconds [ 39.807076] cnss[2]: INFO: Coldboot Calibration completed successfully for device 0xfffe [ 39.814306] cnss[2]: INFO: Coldboot Calibration wait ended for device 0xfffe [ 39.814333] cnss[2]: INFO: Sending mode message, mode: OFF(4), state: 0x7 [ 39.815219] cnss[2]: INFO: QMI WLFW service disconnected, state: 0x6 [ 39.842085] remoteproc remoteproc0: stopped remote processor cd00000.qcom_q6v5_wcss [ 39.842145] wlan: [3711:I:ANY] ol_ath_wifi_ssr: ol_ath_wifi_ssr: SSR event 1 bus_type 1 [ 40.018461] wlan: [3723:I:ANY] =======ol_if_register_wifi3_0========== [ 40.018461] [ 40.018487] wlan: [3723:I:ANY] osif_nss_register_module: NSS wifi ops registered for target_type:1 with soc_ops:ffffffbffd91ddd8 [ 40.018519] wlan: [3723:I:ANY] ol_ath_wifi_ssr: ol_ath_wifi_ssr: SSR event 2 bus_type 1 [ 40.018544] remoteproc remoteproc0: powering up cd00000.qcom_q6v5_wcss [ 40.018793] remoteproc remoteproc0: Booting fw image IPQ8074/q6_fw.mdt, size 668 [ 40.381978] Subsystem error monitoring/handling services are up [ 40.382476] remoteproc remoteproc0: remote processor cd00000.qcom_q6v5_wcss is now up [ 40.382567] wlan: [3723:I:ANY] ol_ath_wifi_ssr: ol_ath_wifi_ssr: SSR event 3 bus_type 1 [ 40.382614] cnss[2]: INFO: Waiting for FW ready. Device: 0xfffe, FW ready timeout: 15 seconds [ 40.382740] rpmsg_dev_probe: No pm domain [ 40.382947] rpmsg_dev_probe: No pm domain [ 40.383846] cnss[2]: INFO: QMI WLFW service connected, state: 0x1 [ 40.384042] cnss[2]: INFO: device_id : 65534 mem mode : [0] [ 40.384055] cnss[2]: INFO: platform name: Qualcomm Technologies, Inc. IPQ807x/AP-AC02 [ 40.396126] cnss[2]: ERR: WARNING: More memory is reserved. Reserved size 0x5f00000, Requested size 0x5dec000. [ 40.396737] cnss[2]: INFO: Target capability: chip_id: 0x0, chip_family: 0x0, board_id: 0xff, soc_id: 0xffffffff, fw_version: 0x260884a5, fw_build_timestamp: 2023-05-17 07:53, otp_version: 0x0 eeprom_caldata_read_timeout 0s [ 40.396755] cnss[2]: INFO: Boardid from dts:292,FW:ff [ 40.396762] cnss[2]: INFO: ZYXEL Replace BDF filename IPQ8074/bdwlan.b292 with IPQ8074/bdwlan.bin [ 40.397140] cnss[2]: INFO: BDF location : 0x4b0c0000 [ 40.397147] cnss[2]: INFO: BDF IPQ8074/bdwlan.bin size 131072 [ 40.397789] cnss[2]: INFO: per device BDF location : 0x4b0e0000 [ 40.397893] cnss[2]: INFO: CALDATA IPQ8074/caldata.bin size 131072 offset 0x20000 [ 40.484265] cnss[2]: INFO: FW ready received for device 0xfffe [ 40.484994] wlan: [3723:I:ANY] pld_ahb_wlan_enable: cnss_mode: Mission mode [ 40.485251] cnss[2]: INFO: Sending mode message, mode: MISSION(0), state: 0x7 [ 40.494771] wlan: [3723:I:ANY] qca_napi_create: qca_napi_create: napi instance 0 created on pipe 4 [ 40.495072] wlan: [3723:I:ANY] __ol_ath_attach: Allocated soc ffffffc033d80880 [ 40.495172] wlan: [3723:D:dfs] WLAN_DEBUG_DFS1 : dfs_psoc_obj_create_notification: DFS obj attach to psoc successfully [ 40.495273] wlan: [3723:I:ANY] qdf_ini_parse: INI values read: 0 [ 40.495283] wlan: [3723:I:ANY] qdf_ini_parse: INI file parse fail: invalid file format [ 40.495295] wlan: [3723:E:CONFIG] cfg_ini_parse_to_store: Failed to parse *.ini file @ QCA8074.ini; status:4 [ 40.506189] wlan: [3723:I:ANY] qdf_ini_parse: INI values read: 84 [ 40.506199] wlan: [3723:I:ANY] qdf_ini_parse: INI file parse successful [ 40.506307] wlan: [3723:I:ANY] osif_nss_wifi_soc_setup: nss register id -1 nss config 0 Target Type 18 [ 40.506328] wlan: [3723:I:ANY] __ol_ath_attach: dev name soc0 [ 40.506598] wlan: [3723:I:ANY] ol_ath_soc_attach: WMI attached. wmi_handle ffffffc038a59800 [ 40.519494] wlan: [3723:I:MBSSIE] ol_ath_ema_init_ctx: rnr_field_size_limit_override:0 [ 40.519509] wlan: [3723:I:MBSSIE] ol_ath_ema_init_ctx: mbss_ie_enable :0x0 [ 40.519518] wlan: [3723:I:MBSSIE] ol_ath_ema_init_ctx: max_pp: 1 [ 40.519530] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 1 [ 40.519540] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 1 [ 40.519550] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 1 [ 40.519564] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 1 [ 40.519574] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 1 [ 40.519583] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 1 [ 40.519593] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 7 [ 40.519602] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 7 [ 40.519612] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 7 [ 40.519621] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 7 [ 40.519631] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 1 [ 40.519641] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 1 [ 40.519651] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 1 [ 40.519660] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 7 [ 40.519670] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 7 [ 40.519680] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size: 0 ven_ie_size_nibble: 0 [ 40.519689] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_config_low: 0x0 [ 40.519698] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_config_high: 0x0 [ 40.519708] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_vendor_ie_config: vendor_ie_size_limit: 1 [ 40.519719] wlan: [3723:I:MBSSIE] ol_ath_ema_sanitize_optional_ie_config: optional_ie_size_limit: 0x64 [ 40.519729] wlan: [3723:I:MBSSIE] ol_ath_ema_init_ctx: max_pp:1 max_ngroups:1 [ 40.519738] wlan: [3723:I:MBSSIE] ol_ath_ema_determine_max_ngroup: max_non_tx_sz :870 [ 40.519747] wlan: [3723:I:MBSSIE] ol_ath_ema_determine_max_ngroup: max_non_tx_sz_limit :200 [ 40.519756] wlan: [3723:I:MBSSIE] ol_ath_ema_determine_max_ngroup: max_pp :1 [ 40.519766] wlan: [3723:I:MBSSIE] ol_ath_ema_determine_max_ngroup: no_of_ntx_vap_in_1_bcn: 4 [ 40.519775] wlan: [3723:I:MBSSIE] ol_ath_ema_determine_max_ngroup: no_of_ntx_vap_in_pp_bcns: 4 [ 40.519784] wlan: [3723:I:MBSSIE] ol_ath_ema_determine_max_ngroup: no_of_vaps_in_1_grp: 4 [ 40.519793] wlan: [3723:I:MBSSIE] ol_ath_ema_determine_max_ngroup: max_ngroup: 4 [ 40.519802] wlan: [3723:I:MBSSIE] ol_ath_ema_determine_max_ngroup: grp_sz: 4 [ 40.519811] wlan: [3723:I:MBSSIE] ol_ath_soc_attach: rnr_6ghz_adv_override:0 [ 40.519822] wlan: [3723:I:ANY] htc_wmi_init: HTC Pipe Ready Timeout 6000ms [ 40.519861] wlan: [3723:I:ANY] htc_wmi_init: HT Create . ffffffc02f946000 [ 40.519871] wlan: [3723:I:ANY] htc_wmi_init: Skipping BMI Done [ 40.519881] wlan: [3723:I:ANY] htc_wmi_init: host_enable 0 [ 40.544343] wlan: [3723:I:ANY] ol_target_init_complete: CDP soc attach success [ 40.544363] wlan: [3723:I:ANY] ol_target_init_complete: Soc attach success NSS config 0 [ 40.544509] wlan: [3723:I:ANY] htc_set_async_ep: htc_set_async_ep: htc_handle ffffffc02f946000, ep 2, value 1 [ 40.544572] wlan: [3723:I:ANY] htc_set_async_ep: htc_set_async_ep: htc_handle ffffffc02f946000, ep 3, value 1 [ 40.545164] wlan: [3222:I:TIF] HE_CAP Info = 9a18010d [ 40.545175] wlan: [3222:I:TIF] Num HW modes = 1 [ 40.545183] wlan: [3222:I:TIF] Num PHY = 2 [ 40.545192] wlan: [3222:I:TIF] FW Build Version (Ext.) = 0 [ 40.545201] wlan: [3222:I:TIF] HDL Version: MajorVersion.MinorVersion = 0.0 [ 40.545213] wlan: [3222:I:TIF] Preferred HW Mode = 1 Num Radios = 2 [ 40.545255] wlan: [3222:I:TIF] init_deinit_add_11ax_modes: hw_mode_id = 1 phy_id = 0 wireless modes = f97f9001 [ 40.545266] wlan: [3222:W:TIF] add_11ax_mode_flags: 11AX wireless modes are not populated by the target in reg capabilities, adding 11AX wireless modes [ 40.545277] wlan: [3222:I:TIF] init_deinit_add_11ax_modes: hw_mode_id = 1 phy_id = 1 wireless modes = 680688c [ 40.545291] wlan_create_pdev_netdevice: soc_idx 0 radio_id 0 [ 40.545296] soc_idx 0 radio_id 0 map to zyxel radio_id 1 [ 40.546004] wlan: [3222:I:TIF] init_deinit_alloc_pdevs: CDP PDEV ATTACH success [ 40.546009] wlan_create_pdev_netdevice: soc_idx 0 radio_id 1 [ 40.546013] soc_idx 0 radio_id 1 map to zyxel radio_id 0 [ 40.546566] wlan: [3222:I:TIF] init_deinit_alloc_pdevs: CDP PDEV ATTACH success [ 40.546578] wlan: [3222:I:TIF] init_deinit_get_total_num_ema_vaps: num_radios: 2 [ 40.546590] wlan: [3222:I:TIF] init_deinit_get_total_num_ema_vaps: ema_max_vap_cnt: 0 [ 40.546601] wlan: [3222:I:TIF] init_deinit_get_total_num_vdevs_for_soc: num_vdevs: 34 [ 40.546614] wlan: [3222:I:TIF] init_deinit_get_total_num_ema_vaps: num_radios: 2 [ 40.546624] wlan: [3222:I:TIF] init_deinit_get_total_num_ema_vaps: ema_max_vap_cnt: 0 [ 40.546638] wlan: [3222:I:TIF] init_deinit_get_total_num_vdevs_for_soc: num_vdevs: 34 [ 40.546650] wlan: [3222:I:TIF] init_deinit_get_total_num_ema_vaps: num_radios: 2 [ 40.546659] wlan: [3222:I:TIF] init_deinit_get_total_num_ema_vaps: ema_max_vap_cnt: 0 [ 40.546669] wlan: [3222:I:TIF] init_deinit_get_total_num_vdevs_for_soc: num_vdevs: 34 [ 40.546677] wlan: [3222:I:TIF] init_deinit_get_total_num_ema_vaps: num_radios: 1 [ 40.546687] wlan: [3222:I:TIF] init_deinit_get_total_num_ema_vaps: ema_max_vap_cnt: 0 [ 40.546696] wlan: [3222:I:TIF] init_deinit_get_total_num_vdevs_for_soc: num_vdevs: 17 [ 40.546709] wlan: [3222:I:ANY] init_deinit_update_pdev_tgt_info: pdev id:0 wmi_handle:ffffffc038a59800 [ 40.553709] wlan: [3222:I:ANY] init_deinit_update_pdev_tgt_info: Pdev = 0 Number of peers = 529 vdevs = 17 [ 40.553729] wlan: [3222:I:TIF] init_deinit_update_pdev_tgt_info: CDP PDEV INIT success [ 40.553976] wlan: [3222:I:ANY] init_deinit_update_pdev_tgt_info: pdev id:1 wmi_handle:ffffffc02f699800 [ 40.561217] wlan: [3222:I:ANY] init_deinit_update_pdev_tgt_info: Pdev = 1 Number of peers = 529 vdevs = 17 [ 40.561236] wlan: [3222:I:TIF] init_deinit_update_pdev_tgt_info: CDP PDEV INIT success [ 40.661907] wlan: [3222:I:ANY] copy_fw_abi_version_tlv: copy_fw_abi_version_tlv: INIT_CMD version: 1, 0, 0x5f414351, 0x4c4d, 0x0, 0x0 [ 40.889802] zy_reg_modify_chan_list :Country code does not match, current country is 840, zy channel is for 0 [ 40.889979] zy_reg_modify_chan_list :Country code does not match, current country is 840, zy channel is for 0 [ 40.890017] wlan: [3222:I:ANY] ready_extract_init_status_tlv: ready_extract_init_status_tlv:0 [ 40.890031] wlan: [3222:I:ANY] dp_peer_map_attach_wifi3: dp_peer_map_attach_wifi3 max_peers 1109, max_ast_index: 4112 [ 40.890031] [ 40.890359] wlan: [3723:I:ANY] ol_ath_connect_htc: WMI is ready [ 40.890523] wlan: [3723:I:ANY] ol_ath_soc_attach: connect HTC [ 40.890533] wlan: [3723:I:ANY] ol_ath_soc_attach: bypasswmi : 0 [ 40.890573] wlan: [3723:I:MSCS] qca_mscs_module_init: [ 40.890573] ****QCA MSCS Initialization Done**** SoC ffffffc033d80880 [ 40.890583] wlan: [3723:I:ANY] ol_ath_soc_attach: UMAC attach [ 40.890676] wlan: [3723:I:ANY] __ol_ath_attach: pdev_netdev name wifi1 [ 40.890704] wlan: [3723:I:ANY] __ol_ath_attach: Skip txrx_pdev_attach_target [ 40.891564] wlan: [3723:I:ANY] __ol_ath_attach: BURSTING enabled by default [ 40.891645] wlan: [3723:I:ANY] ol_ath_pdev_attach: interface_id 1 [ 40.891665] wlan: [3723:I:ANY] ol_ath_pdev_attach: host_num_peers_pdev=512, max_target_connected_peers=1024 [ 40.891665] [ 40.891677] wlan: [3723:I:TIF] ol_ath_pdev_regdmn_init: phy id = 0 Modes supported [ 40.891688] wlan: [3723:I:TIF] ol_ath_pdev_regdmn_init: 11b = 0 11g = 0 11a = 1 11n = 1 11ac = 1 11ax = 1 [ 40.891700] wlan: [3723:I:TIF] ol_ath_pdev_regdmn_init: Reg cap - phy_id = 0 supp_bnd = 2, modes = 793f9001, lo_2g = 0, hi_2g = 0 lo_g5 = 4900, hi_5g = 5920 [ 40.891710] wlan: [3723:I:ANY] ol_ath_update_wireless_modes: wireless_modes = 793f9001 before update [ 40.891719] wlan: [3723:I:ANY] ol_ath_update_wireless_modes: Wireless_modes = 793f9001 after update [ 40.891731] wlan: [3723:I:ANY] ol_ath_update_ext_he_caps: 11ax 5G supported case [ 40.891933] wlan: [3723:I:MBSSIE] ieee80211_mbss_attach: :> [ 40.891943] wlan: [3723:I:MBSSIE] ieee80211_mbss_attach: :<ret:0 [ 40.891954] wlan: [3723:I:ANY] ol_resmgr_create: OL Resmgr Init-ed [ 40.892278] wlan: [3723:I:ANY] acfg_attach: acfg_attach: 3382: Netlink socket created:ffffffc02f69a400 [ 40.892340] wlan: [3723:I:ANY] ol_ath_stats_attach: periodic_chan_stats: 1 [ 40.894198] wlan: [3723:I:ANY] wlan_scan_update_channel_list: num_chan: 25 [ 40.894299] wlan: [0:I:ANY] ol_ath_pdev_attach: Set global_ic[1], ptr:ffffffbffd32c7e8 [ 40.894317] wlan: [0:I:ANY] dp_lag_soc_enable: pdev(ffffffc037f2b010) Enabling DBDC Repeater 0 soc_lag ffffffc02f47eb00 [ 40.894341] wlan: [0:I:ANY] dp_lag_pdev_set_primary_radio: pdev(ffffffc037f2b010) is_primary 0 [ 40.894946] wlan: [0:I:ANY] ol_ath_twt_enable_complete_event_handler: twt enabled [ 40.896655] wlan: [3723:I:ANY] ol_ath_ucfg_set_rx_pkt_protocol_tagging: Set RX packet type TAG, opcode : 0, pkt_type : 18, metadata : 0xca0,pdev_id = 0, REO dest ring = 5 [ 40.896655] [ 40.896715] wlan: [3723:I:ANY] ol_ath_pri20_cfg_blockchanlist_parse: cfg block channel list is empty [ 40.896734] wlan: [3723:I:ANY] ol_ath_configure_cong_ctrl_max_msdus: pdev_idx = 0 tx_desc_limit = 32768 [ 40.896799] wlan: [3723:I:ANY] __ol_ath_attach: needed_headroom reservation 60 [ 40.897086] wlan: [3723:I:ANY] ieee80211_cfg80211_radio_attach: ic: 0xffffffc02f6a0880, wdev: 0xffffffc02f6a9b10, wiphy: 0xffffffc02cdd12a0, netdev: 0xffffffc02f6a0000 [ 40.897893] wlan: [3723:I:ANY] __ol_ath_attach: pdev_netdev name wifi0 [ 40.897927] wlan: [3723:I:ANY] __ol_ath_attach: Skip txrx_pdev_attach_target [ 40.898807] wlan: [3723:I:ANY] __ol_ath_attach: BURSTING enabled by default [ 40.898892] wlan: [3723:I:ANY] ol_ath_pdev_attach: interface_id 0 [ 40.898924] wlan: [3723:I:ANY] ol_ath_pdev_attach: host_num_peers_pdev=512, max_target_connected_peers=1024 [ 40.898924] [ 40.898941] wlan: [3723:I:TIF] ol_ath_pdev_regdmn_init: phy id = 1 Modes supported [ 40.898952] wlan: [3723:I:TIF] ol_ath_pdev_regdmn_init: 11b = 1 11g = 1 11a = 0 11n = 1 11ac = 1 11ax = 1 [ 40.898966] wlan: [3723:I:TIF] ol_ath_pdev_regdmn_init: Reg cap - phy_id = 1 supp_bnd = 1, modes = 680680c, lo_2g = 2312, hi_2g = 2732 lo_g5 = 0, hi_5g = 0 [ 40.898976] wlan: [3723:I:ANY] ol_ath_update_wireless_modes: wireless_modes = 680680c before update [ 40.898988] wlan: [3723:I:ANY] ol_ath_update_wireless_modes: Wireless_modes = 680680c after update [ 40.899001] wlan: [3723:I:ANY] ol_ath_update_ext_he_caps: 11ax 2G supported case [ 40.899057] wlan: [3723:I:ANY] ol_ath_pdev_regdmn_init: LDPC not supported in 5G HE CAP [ 40.899247] wlan: [3723:I:MBSSIE] ieee80211_mbss_attach: :> [ 40.899259] wlan: [3723:I:MBSSIE] ieee80211_mbss_attach: :<ret:0 [ 40.899270] wlan: [3723:I:ANY] ol_resmgr_create: OL Resmgr Init-ed [ 40.899591] wlan: [3723:I:ANY] acfg_attach: Offload using existing sock ffffffc02f69a400 [ 40.899610] wlan: [3723:I:ANY] ol_ath_stats_attach: periodic_chan_stats: 1 [ 40.900591] wlan: [3723:I:ANY] wlan_scan_update_channel_list: num_chan: 11 [ 40.900684] wlan: [0:I:ANY] ol_ath_pdev_attach: Set global_ic[2], ptr:ffffffbffd32c7e8 [ 40.900701] wlan: [0:I:ANY] dp_lag_soc_enable: pdev(ffffffc037f29010) Enabling DBDC Repeater 0 soc_lag ffffffc02f47eb00 [ 40.900719] wlan: [0:I:ANY] dp_lag_pdev_set_primary_radio: pdev(ffffffc037f29010) is_primary 0 [ 40.901059] wlan: [0:I:ANY] ol_ath_twt_enable_complete_event_handler: twt enabled [ 40.903276] wlan: [3723:I:ANY] ol_ath_ucfg_set_rx_pkt_protocol_tagging: Set RX packet type TAG, opcode : 0, pkt_type : 18, metadata : 0xca0,pdev_id = 1, REO dest ring = 5 [ 40.903276] [ 40.903338] wlan: [3723:I:ANY] ol_ath_pri20_cfg_blockchanlist_parse: cfg block channel list is empty [ 40.903357] wlan: [3723:I:ANY] ol_ath_configure_cong_ctrl_max_msdus: pdev_idx = 1 tx_desc_limit = 32768 [ 40.903421] wlan: [3723:I:ANY] __ol_ath_attach: needed_headroom reservation 60 [ 40.903455] wlan: [3723:I:ANY] wlan_cfg80211_init: Number of 2G channels: 11 [ 40.903701] wlan: [3723:I:ANY] ieee80211_cfg80211_radio_attach: ic: 0xffffffc02f720880, wdev: 0xffffffc02f729b10, wiphy: 0xffffffc02cdd52a0, netdev: 0xffffffc02f720000 [ 40.904427] wlan: [3723:I:Dynamic Mode Change] ol_ath_check_and_reconfig_hw_mode: Running with HW mode = 1 [ 40.904887] wlan: [3723:E:QLD] qld_register: Handle or address is NULL [ 40.904939] wlan: [3723:I:ANY] wlan_pdev_operation: num_radios=1, wifi_radios[0].sc = ffffffc02f6a0880_radio_type = 2 [ 40.904952] wlan: [3723:I:ANY] wlan_pdev_operation: num_radios=2, wifi_radios[1].sc = ffffffc02f720880_radio_type = 2 [ 40.904989] wlan: [3723:I:ANY] init_ath_pci_3_0: 6ath_ol_pci_wifi3.0 : (Atheros/multi-bss) [ 40.959289] wlan: [3741:E:MONITOR] mon_soc_ol_attach: pdev object (id: 2) is NULL [ 41.056801] wlan: [3743:I:ANY] osif_nss_register_module: NSS wifi ops registered for target_type:0 with soc_ops:ffffffbffd9fa170 [ 41.057179] wlan: [3743:I:ANY] init_ath_pci_2_0: 6ath_ol_pci_2_0: (Atheros/multi-bss) [ 41.867229] wlan: [4206:I:ANY] wlan_cfg80211_set_hwaddr: wlan_cfg80211_set_hwaddr :d8:ec:e5:xx:xx:xx ret: 0 [ 41.905893] zy_reg_modify_chan_list :Country code does not match, current country is 276, zy channel is for 0 [ 41.906969] wlan: [4210:I:ANY] wlan_scan_update_channel_list: num_chan: 13 [ 41.907052] wlan: [4210:I:ANY] ieee80211_setctry_tryretaining_curchan: [467] Skipping current channel retention during set_country operation [ 41.907079] wlan: [4210:I:ANY] number of channels: 2G = 13 5G = 0, 6G = 0 [ 41.950038] wlan: [4217:I:ANY] wlan_cfg80211_set_hwaddr: wlan_cfg80211_set_hwaddr :d8:ec:e5:xx:xx:xx ret: 0 [ 41.988814] zy_reg_modify_chan_list :Country code does not match, current country is 276, zy channel is for 0 [ 41.990656] wlan: [4221:I:ANY] wlan_scan_update_channel_list: num_chan: 19 [ 41.990898] wlan: [4221:E:ANY] dfs_init_chan_state_array: channel state array initialized [ 41.992600] wlan: [4221:I:ANY] wlan_scan_update_channel_list: num_chan: 19 [ 41.992785] wlan: [4221:I:ANY] ieee80211_setctry_tryretaining_curchan: [467] Skipping current channel retention during set_country operation [ 41.992812] wlan: [4221:I:ANY] number of channels: 2G = 0 5G = 19, 6G = 0

Log Type: B - Since Boot(Power On Reset), D - Delta, S - Statistic S - QC_IMAGE_VERSION_STRING=BOOT.BF.3.3.1-00163 S - IMAGE_VARIANT_STRING=HAABANAZA S - OEM_IMAGE_VERSION_STRING=CRM S - Boot Config, 0x000002e1 B - 201 - PBL, Start B - 2736 - bootable_media_detect_entry, Start B - 2883 - bootable_media_detect_success, Start B - 2887 - elf_loader_entry, Start B - 11410 - auth_hash_seg_entry, Start B - 11651 - authFormat: Log Type - Time(microsec) - Message - Optional Info _hash_seg_exit, Start B - 251718 - elf_segs_hash_verify_entry, Start B - 312401 - PBL, End B - 336598 - SBL1, Start B - 390461 - GCC [RstStat:0x10, RstDbg:0x600000] WDog Stat : 0x4 B - 397201 - pm_device_init, Start B - 523502 - PM_SET_VAL:Skip D - 125751 - pm_device_init, Delta B - 525911 - pm_driver_init, Start D - 5398 - pm_driver_init, Delta B - 532286 - clock_init, Start D - 2165 - clock_init, Delta B - 536281 - boot_flash_init, Start D - 16226 - boot_flash_init, Delta B - 556167 - boot_config_data_table_init, Start D - 1067 - boot_config_data_table_init, Delta - (575 Bytes) B - 563792 - Boot Setting : 0x00000618 B - 567544 - CDT version:2,Platform ID:8,Major ID:1,Minor ID:0,Subtype:10 B - 574559 - sbl1_ddr_set_params, Start B - 578402 - CPR configuration: 0x30c B - 581787 - cpr_init, Start B - 584563 - Rail:0 Mode: 5 Voltage: 800000 B - 589809 - CL CPR settled at 752000mV B - 592645 - Rail:1 Mode: 5 Voltage: 880000 B - 596824 - Rail:1 Mode: 7 Voltage: 896000 D - 16561 - cpr_init, Delta B - 603686 - Pre_DDR_clock_init, Start B - 607712 - Pre_DDR_clock_init, End B - 611006 - DDR Type : PCDDR4 B - 617686 - do ddr sanity test, Start D - 1067 - do ddr sanity test, Delta B - 621498 - DDR: Start of HAL DDR Boot Training B - 626256 - DDR: End of HAL DDR Boot Training B - 632021 - DDR: Checksum to be stored on flash is 1888598332 B - 642360 - Image Load, Start D - 338031 - QSEE Image Loaded, Delta - (1377492 Bytes) B - 980453 - Image Load, Start D - 61 - SEC Image Loaded, Delta - (0 Bytes) B - 988139 - Image Load, Start D - 9882 - DEVCFG Image Loaded, Delta - (26152 Bytes) B - 998112 - Image Load, Start D - 26017 - RPM Image Loaded, Delta - (86660 Bytes) B - 1024190 - Image Load, Start D - 135298 - APPSBL Image Loaded, Delta - (548254 Bytes) B - 1159610 - QSEE Execution, Start D - 61 - QSEE Execution, Delta B - 1165405 - USB D+ check, Start D - 0 - USB D+ check, Delta B - 1171810 - SBL1, End D - 837530 - SBL1, Delta S - Flash Throughput, 4425 KB/s (2039805 Bytes, 460939 us) S - DDR Frequency, 600 MHz S - Core 0 Frequency, 800 MHz U-Boot 2016.01 (Jan 03 2025 - 05:11:38 +0800), Build: jenkins-wlan-ap-nwa210ax.13-914 EXT HW WDT: en=1, wdi=0, flag=0 Watchdog enabled DRAM: smem ram ptable found: ver: 1 len: 4 1 GiB NAND: Could not find nand_gpio in dts, using defaults ONFI device found ID = 1590aaef Vendor = ef Device = aa SPI_ADDR_LEN=3 SF: Detected W25Q64DW with page size 256 Bytes, erase size 4 KiB, total 8 MiB ipq_spi: page_size: 0x100, sector_size: 0x1000, size: 0x800000 264 MiB MMC: sdhci: Node Not found, skipping initialization In: serial@78B3000 Out: serial@78B3000 Err: serial@78B3000 machid: 801000a MMC Device 0 not found SPI_ADDR_LEN=3 SF: Detected W25Q64DW with page size 256 Bytes, erase size 4 KiB, total 8 MiB device 0 offset 0x610000, size 0x10000 SF: 65536 bytes @ 0x610000 Read: OK Bus 0: i2c@78ba000 (active 0) Setting bus to 0 Valid chip addresses: 30 Hit any key to stop autoboot: 0 aquantia_port not specified in dtsSPI_ADDR_LEN=3 SF: Detected W25Q64DW with page size 256 Bytes, erase size 4 KiB, total 8 MiB device 0 offset 0x80000, size 0x10000 SF: 65536 bytes @ 0x80000 Read: OK ubi0: attaching mtd2 ubi0: scanning is finished ubi0: attached mtd2 (name "mtd=0", size 60 MiB) ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096 ubi0: good PEBs: 480, bad PEBs: 0, corrupted PEBs: 0 ubi0: user volume: 4, internal volumes: 1, max. volumes count: 128 ubi0: max/mean erase counter: 15/7, WL threshold: 4096, image sequence number: 1361285892 ubi0: available PEBs: 0, total reserved PEBs: 480, PEBs reserved for bad PEB handling: 40 Read 0 bytes from volume kernel to 44000000 No size specified -> Using max size (4444160) ## Loading kernel from FIT Image at 44000000 ... Using 'config@ac02' configuration Trying 'kernel@1' kernel subimage Description: ARM64 OpenWrt Linux-4.4.60 Type: Kernel Image Compression: gzip compressed Data Start: 0x440000e8 Data Size: 3999527 Bytes = 3.8 MiB Architecture: AArch64 OS: Linux Load Address: 0x41080000 Entry Point: 0x41080000 Hash algo: crc32 Hash value: f2bab4eb Hash algo: sha1 Hash value: 52279409e776ea86e46e2e4ab8c69251557bde6d Verifying Hash Integrity ... crc32+ sha1+ OK ## Loading fdt from FIT Image at 44000000 ... Using 'config@ac02' configuration Trying 'fdt@ac02' fdt subimage Description: ARM64 OpenWrt qcom-ipq807x-ac02 device tree blob Type: Flat Device Tree Compression: uncompressed Data Start: 0x444230dc Data Size: 83466 Bytes = 81.5 KiB Architecture: AArch64 Hash algo: crc32 Hash value: 2fda27a0 Hash algo: sha1 Hash value: a1a5bd10dbf687ede4430396b4add041e00717dc Verifying Hash Integrity ... crc32+ sha1+ OK Booting using the fdt blob at 0x444230dc Uncompressing Kernel Image ... OK Loading Device Tree to 4a3e8000, end 4a3ff609 ... OK Using machid 0x801000a from environment Starting kernel ... Jumping to AARCH64 kernel via monitor OpenRC init version 0.41.2.93032ec65 starting Starting sysinit runlevel OpenRC 0.41.2.93032ec65 is starting up Linux 4.4.60 (aarch64) * Mounting /proc ... [ ok ] * Mounting /run ... * /run/openrc: creating directory * /run/lock: creating directory * Caching service dependencies ... [ ok ] * Mounting /sys ... * Remounting devtmpfs on /dev ... [ ok ] * Mounting debug filesystem ... [ ok ] * Mounting config filesystem ... [ ok ] * Mounting /dev/mqueue ... [ ok ] * Mounting /dev/pts ... [ ok ] * Mounting /dev/shm ... [ ok ] mdev 3.765 | * Setting up mdev as hotplug agent ... [ ok ] mdev 3.776 | * Populating /dev with existing devices with mdev -s ... [ ok ] Starting boot runlevel Starting default runlevel Start EnterpriseWLAN system daemon.... . WIFI FW mount is successful ln: ./firmware_rdp_feature.ini: Read-only file system 12064+0 records in 12064+0 records out 12064 bytes (11.8KB) copied, 0.052354 seconds, 225.0KB/s 131072+0 records in 131072+0 records out 131072 bytes (128.0KB) copied, 0.504140 seconds, 253.9KB/s ***** starting cnssdaemon -i integrated ***** *****cnssdaemon pid=3391********* *********initiating cold boot calibration************* No Direct-Attach chipsets found. Applying system configuration file, please wait... ...............................EnterpriseWLAN system is configured successfully with startup-config.conf Welcome to NWA210AX Username:

[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034] [ 0.000000] Linux version 6.12.57 (abc@code) (aarch64-openwrt-linux-musl-gcc (OpenWrt GCC 14.3.0 r31617+91-677c5c3b0d) 14.3.0, GNU ld (GNU Binutils) 2.44) #0 SMP Fri Nov 7 13:46:17 2025 [ 0.000000] Machine model: Zyxel NWA210AX [ 0.000000] OF: reserved mem: 0x0000000040000000..0x0000000040ffffff (16384 KiB) nomap non-reusable nss@40000000 [ 0.000000] OF: reserved mem: 0x000000004a400000..0x000000004a5fffff (2048 KiB) nomap non-reusable tzapp@4a400000 [ 0.000000] OF: reserved mem: 0x000000004a600000..0x000000004a9fffff (4096 KiB) nomap non-reusable bootloader@4a600000 [ 0.000000] OF: reserved mem: 0x000000004aa00000..0x000000004aafffff (1024 KiB) nomap non-reusable sbl@4aa00000 [ 0.000000] OF: reserved mem: 0x000000004ab00000..0x000000004abfffff (1024 KiB) nomap non-reusable smem@4ab00000 [ 0.000000] OF: reserved mem: 0x000000004ac00000..0x000000004affffff (4096 KiB) nomap non-reusable memory@4ac00000 [ 0.000000] OF: reserved mem: 0x000000004b000000..0x0000000050efffff (97280 KiB) nomap non-reusable wcnss@4b000000 [ 0.000000] OF: reserved mem: 0x0000000050f00000..0x0000000050ffffff (1024 KiB) nomap non-reusable q6_etr_dump@50f00000 [ 0.000000] OF: reserved mem: 0x0000000051000000..0x00000000510fffff (1024 KiB) nomap non-reusable m3_dump@51000000 [ 0.000000] Zone ranges: [ 0.000000] DMA [mem 0x0000000040000000-0x000000007fffffff] [ 0.000000] DMA32 empty [ 0.000000] Normal empty [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000040000000-0x0000000040ffffff] [ 0.000000] node 0: [mem 0x0000000041000000-0x000000004a3fffff] [ 0.000000] node 0: [mem 0x000000004a400000-0x00000000510fffff] [ 0.000000] node 0: [mem 0x0000000051100000-0x000000007fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000007fffffff] [ 0.000000] psci: probing for conduit method from DT. [ 0.000000] psci: PSCIv1.0 detected in firmware. [ 0.000000] psci: Using standard PSCI v0.2 function IDs [ 0.000000] psci: MIGRATE_INFO_TYPE not supported. [ 0.000000] psci: SMC Calling Convention v1.0 [ 0.000000] percpu: Embedded 20 pages/cpu s43224 r8192 d30504 u81920 [ 0.000000] pcpu-alloc: s43224 r8192 d30504 u81920 alloc=20*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [ 0.000000] Detected VIPT I-cache on CPU0 [ 0.000000] alternatives: applying boot alternatives [ 0.000000] Kernel command line: console=ttyMSM0,115200n8 loglevel=0 bootImage=0 mtdoops.mtddev=disklog mtdoops.record_size=126976 mtdoops.dump_oops=0 ubi.mtd=rootfs root=mtd:ubi_rootfs rootfstype=squashfs rootwait root=/dev/ubiblock0_1 [ 0.000000] Unknown kernel command line parameters "bootImage=0", will be passed to user space. [ 0.000000] Dentry cache hash table entries: 131072 (order: 8, 1048576 bytes, linear) [ 0.000000] Inode-cache hash table entries: 65536 (order: 7, 524288 bytes, linear) [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 262144 [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [ 0.000000] software IO TLB: SWIOTLB bounce buffer size adjusted to 1MB [ 0.000000] software IO TLB: area num 4. [ 0.000000] software IO TLB: mapped [mem 0x000000007eb00000-0x000000007ec00000] (1MB) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1 [ 0.000000] rcu: Hierarchical RCU implementation. [ 0.000000] Tracing variant of Tasks RCU enabled. [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies. [ 0.000000] RCU Tasks Trace: Setting shift to 2 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=4. [ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0 [ 0.000000] Root IRQ handler: gic_handle_irq [ 0.000000] GICv2m: range[mem 0x0b00a000-0x0b00affc], SPI[448:479] [ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention. [ 0.000000] arch_timer: cp15 and mmio timer(s) running at 19.20MHz (virt/virt). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x46d987e47, max_idle_ns: 440795202767 ns [ 0.000001] sched_clock: 56 bits at 19MHz, resolution 52ns, wraps every 4398046511078ns [ 0.000110] Calibrating delay loop (skipped), value calculated using timer frequency.. 38.40 BogoMIPS (lpj=192000) [ 0.000124] pid_max: default: 32768 minimum: 301 [ 0.005132] Mount-cache hash table entries: 2048 (order: 2, 16384 bytes, linear) [ 0.005149] Mountpoint-cache hash table entries: 2048 (order: 2, 16384 bytes, linear) [ 0.010211] rcu: Hierarchical SRCU implementation. [ 0.010223] rcu: Max phase no-delay instances is 1000. [ 0.010532] Timer migration: 1 hierarchy levels; 8 children per group; 1 crossnode level [ 0.010954] smp: Bringing up secondary CPUs ... [ 0.011647] Detected VIPT I-cache on CPU1 [ 0.011762] CPU1: Booted secondary processor 0x0000000001 [0x410fd034] [ 0.012544] Detected VIPT I-cache on CPU2 [ 0.012622] CPU2: Booted secondary processor 0x0000000002 [0x410fd034] [ 0.013332] Detected VIPT I-cache on CPU3 [ 0.013405] CPU3: Booted secondary processor 0x0000000003 [0x410fd034] [ 0.013490] smp: Brought up 1 node, 4 CPUs [ 0.013499] SMP: Total of 4 processors activated. [ 0.013503] CPU: All CPU(s) started at EL1 [ 0.013506] CPU features: detected: 32-bit EL0 Support [ 0.013512] CPU features: detected: CRC32 instructions [ 0.013561] alternatives: applying system-wide alternatives [ 0.013779] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching [ 0.014032] Memory: 881648K/1048576K available (8768K kernel code, 902K rwdata, 2860K rodata, 960K init, 286K bss, 163456K reserved, 0K cma-reserved) [ 0.023922] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.023950] futex hash table entries: 1024 (order: 4, 65536 bytes, linear) [ 0.024087] 29264 pages in range for non-PLT usage [ 0.024091] 520784 pages in range for PLT usage [ 0.026193] pinctrl core: initialized pinctrl subsystem [ 0.028405] NET: Registered PF_NETLINK/PF_ROUTE protocol family [ 0.029059] DMA: preallocated 128 KiB GFP_KERNEL pool for atomic allocations [ 0.029100] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations [ 0.029135] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations [ 0.029540] thermal_sys: Registered thermal governor 'step_wise' [ 0.029606] cpuidle: using governor menu [ 0.029886] ASID allocator initialised with 65536 entries [ 0.060950] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4 [ 0.083820] SCSI subsystem initialized [ 0.084048] usbcore: registered new interface driver usbfs [ 0.084087] usbcore: registered new interface driver hub [ 0.084137] usbcore: registered new device driver usb [ 0.084428] qcom_scm: convention: smc arm 64 [ 0.086320] clocksource: Switched to clocksource arch_sys_counter [ 0.089996] NET: Registered PF_INET protocol family [ 0.090181] IP idents hash table entries: 16384 (order: 5, 131072 bytes, linear) [ 0.092581] tcp_listen_portaddr_hash hash table entries: 512 (order: 1, 8192 bytes, linear) [ 0.092607] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) [ 0.092623] TCP established hash table entries: 8192 (order: 4, 65536 bytes, linear) [ 0.092710] TCP bind hash table entries: 8192 (order: 6, 262144 bytes, linear) [ 0.093011] TCP: Hash tables configured (established 8192 bind 8192) [ 0.093598] MPTCP token hash table entries: 1024 (order: 2, 24576 bytes, linear) [ 0.093791] UDP hash table entries: 512 (order: 2, 16384 bytes, linear) [ 0.093830] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes, linear) [ 0.094278] NET: Registered PF_UNIX/PF_LOCAL protocol family [ 0.094320] PCI: CLS 0 bytes, default 64 [ 0.096159] workingset: timestamp_bits=46 max_order=18 bucket_order=0 [ 0.096723] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.096730] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 0.109818] Serial: 8250/16550 driver, 2 ports, IRQ sharing disabled [ 0.110848] msm_serial 78b3000.serial: msm_serial: detected port #0 [ 0.110943] msm_serial 78b3000.serial: uartclk = 3686400 [ 0.111323] 78b3000.serial: ttyMSM0 at MMIO 0x78b3000 (irq = 19, base_baud = 230400) is a MSM [ 0.111372] msm_serial: console setup on port #0 [ 0.111410] printk: legacy console [ttyMSM0] enabled [ 0.111901] msm_serial: driver initialized [ 0.117493] loop: module loaded [ 0.118889] nand: device found, Manufacturer ID: 0xef, Chip ID: 0xaa [ 0.118909] nand: Winbond W29N02GZ [ 0.118916] nand: 256 MiB, SLC, erase size: 128 KiB, page size: 2048, OOB size: 64 [ 0.119167] 5 fixed-partitions partitions found on MTD device qcom_nand.0 [ 0.119178] Creating 5 MTD partitions on "qcom_nand.0": [ 0.119187] 0x000000000000-0x000003c00000 : "rootfs" [ 0.171846] mtd: setting mtd0 (rootfs) as root device [ 0.172174] mtdsplit: no squashfs found in "rootfs" [ 0.172219] 0x000003c00000-0x000004400000 : "0:wififw" [ 0.179583] 0x000004400000-0x000008000000 : "rootfs_1" [ 0.231618] 0x000008000000-0x000008800000 : "0:wififw_1" [ 0.238981] 0x000008800000-0x000010000000 : "logs" [ 0.348398] spi_qup 78b5000.spi: IN:block:16, fifo:64, OUT:block:16, fifo:64 [ 0.349802] 21 fixed-partitions partitions found on MTD device spi0.0 [ 0.349833] Creating 21 MTD partitions on "spi0.0": [ 0.349843] 0x000000000000-0x000000050000 : "0:sbl1" [ 0.350433] 0x000000050000-0x000000060000 : "0:mibib" [ 0.350864] 0x000000060000-0x000000080000 : "0:bootconfig" [ 0.351288] 0x000000080000-0x0000000a0000 : "0:bootconfig1" [ 0.351709] 0x0000000a0000-0x000000220000 : "0:qsee" [ 0.352117] 0x000000220000-0x0000003a0000 : "0:qsee_1" [ 0.352537] 0x0000003a0000-0x0000003b0000 : "0:devcfg" [ 0.352971] 0x0000003b0000-0x0000003c0000 : "0:devcfg_1" [ 0.353379] 0x0000003c0000-0x0000003d0000 : "0:apdp" [ 0.353788] 0x0000003d0000-0x0000003e0000 : "0:apdp_1" [ 0.354195] 0x0000003e0000-0x000000420000 : "0:rpm" [ 0.354710] 0x000000420000-0x000000460000 : "0:rpm_1" [ 0.355130] 0x000000460000-0x000000470000 : "0:cdt" [ 0.355550] 0x000000470000-0x000000480000 : "0:cdt_1" [ 0.355981] 0x000000480000-0x000000490000 : "0:appsblenv" [ 0.356526] 0x000000490000-0x000000530000 : "0:appsbl" [ 0.356964] 0x000000530000-0x0000005d0000 : "0:appsbl_1" [ 0.357425] 0x0000005d0000-0x000000610000 : "0:art" [ 0.357876] 0x000000610000-0x000000620000 : "mrd" [ 0.358711] 0x000000620000-0x000000630000 : "mrd_1" [ 0.359182] 0x000000630000-0x000000800000 : "conf" [ 0.367924] spmi_pmic_arb 200f000.spmi: PMIC arbiter version v2 (0x20010000) [ 0.398001] i2c_dev: i2c /dev entries driver [ 0.406869] sdhci: Secure Digital Host Controller Interface driver [ 0.406899] sdhci: Copyright(c) Pierre Ossman [ 0.406908] sdhci-pltfm: SDHCI platform and OF driver helper [ 0.408490] remoteproc remoteproc0: releasing cd00000.q6v5_wcss [ 0.412210] NET: Registered PF_INET6 protocol family [ 0.413632] Segment Routing with IPv6 [ 0.413694] In-situ OAM (IOAM) with IPv6 [ 0.413795] NET: Registered PF_PACKET protocol family [ 0.413939] 8021q: 802.1Q VLAN Support v1.8 [ 0.448290] qcom,cpr4-apss-regulator b018000.cpr4-ctrl: CPR valid fuse count: 4 [ 0.448679] cpr4_ipq807x_apss_read_fuse_data: apc_corner: speed bin = 0 [ 0.448692] cpr4_ipq807x_apss_read_fuse_data: apc_corner: CPR fusing revision = 1 [ 0.448702] cpr4_ipq807x_apss_read_fuse_data: apc_corner: CPR misc fuse value = 0 [ 0.448734] cpr4_ipq807x_apss_read_fuse_data: apc_corner: Voltage boost fuse config = 0 boost = disable [ 0.448806] cpr3_mem_acc_init: apc: not using memory accelerator regulator [ 0.448815] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused SVS: open-loop= 704000 uV [ 0.448826] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused NOM: open-loop= 840000 uV [ 0.448835] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused TURBO: open-loop= 904000 uV [ 0.448843] cpr4_ipq807x_apss_calculate_open_loop_voltages: apc_corner: fused STURBO: open-loop= 984000 uV [ 0.448900] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused SVS: quot[ 7]= 725, quot_offset[ 7]= 0 [ 0.448912] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused NOM: quot[ 7]= 968, quot_offset[ 7]= 240 [ 0.448923] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused TURBO: quot[ 7]=1068, quot_offset[ 7]= 100 [ 0.448934] cpr4_ipq807x_apss_calculate_target_quotients: apc_corner: fused STURBO: quot[ 7]=1200, quot_offset[ 7]= 130 [ 0.449151] cpr3_regulator_init_ctrl: apc: Default CPR mode = closed-loop [ 0.452608] cpufreq: cpufreq_online: CPU0: Running at unlisted initial frequency: 800000 KHz, changing to: 1017600 KHz [ 0.455236] remoteproc remoteproc0: cd00000.q6v5_wcss is available [ 0.456343] ubi0: attaching mtd0 [ 0.771277] ubi0: scanning is finished [ 0.836858] ubi0: attached mtd0 (name "rootfs", size 60 MiB) [ 0.836882] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 0.836890] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 0.836898] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 0.836906] ubi0: good PEBs: 480, bad PEBs: 0, corrupted PEBs: 0 [ 0.836913] ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128 [ 0.836921] ubi0: max/mean erase counter: 9/6, WL threshold: 4096, image sequence number: 1107730874 [ 0.836929] ubi0: available PEBs: 0, total reserved PEBs: 480, PEBs reserved for bad PEB handling: 40 [ 0.836950] ubi0: background thread "ubi_bgt0d" started, PID 651 [ 0.837872] block ubiblock0_1: created from ubi0:1(rootfs) [ 0.838034] clk: Disabling unused clocks [ 0.838506] PM: genpd: Disabling unused power domains [ 0.842031] VFS: Mounted root (squashfs filesystem) readonly on device 254:0. [ 0.842507] Freeing unused kernel memory: 960K [ 0.842635] Run /sbin/init as init process [ 0.842641] with arguments: [ 0.842645] /sbin/init [ 0.842649] with environment: [ 0.842652] HOME=/ [ 0.842656] TERM=linux [ 0.842660] bootImage=0 [ 1.055419] init: Console is alive [ 1.055562] init: - watchdog - [ 1.547105] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 1.623718] gpio_button_hotplug: loading out-of-tree module taints kernel. [ 1.713667] ssdk_dt_parse_port_bmp[1064]:INFO:port_bmp doesn't exist! [ 1.713705] ssdk_dt_parse_interrupt[942]:INFO:intr-gpio does not exist [ 2.946400] regi_init[2525]:INFO:Initializing HPPE Done!! [ 2.946513] regi_init[2574]:INFO:qca-ssdk module init succeeded! [ 2.949160] EDMA ver 1 hw init [ 2.949412] EDMA HW Reset completed succesfully [ 2.949450] Num rings - TxDesc:1 (23-23) TxCmpl:1 (7-7) [ 2.949459] RxDesc:1 (15-15) RxFill:1 (7-7) [ 2.950733] Generic PHY 90000.mdio-1:01: attached PHY driver (mii_bus:phy_addr=90000.mdio-1:01, irq=POLL) [ 3.018603] Qualcomm QCA8081 90000.mdio-1:10: attached PHY driver (mii_bus:phy_addr=90000.mdio-1:10, irq=POLL) [ 3.019595] ********************************************************** [ 3.019621] * NSS Data Plane driver [ 3.019625] ********************************************************** [ 3.049730] lp5562 0-0030: internal clock used [ 3.051620] lp5562 0-0030: lp5562 Programmable led chip found [ 3.053994] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 3.060993] init: - preinit - [ 3.966320] random: crng init done [ 7.366824] nss-dp 3a001800.dp5 uplink: PHY Link up speed: 1000 [ 8.458050] UBIFS (ubi0:2): Mounting in unauthenticated mode [ 8.458209] UBIFS (ubi0:2): background thread "ubifs_bgt0_2" started, PID 851 [ 8.493297] UBIFS (ubi0:2): recovery needed [ 8.606348] UBIFS (ubi0:2): recovery completed [ 8.606428] UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name "rootfs_data" [ 8.606439] UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 8.606450] UBIFS (ubi0:2): FS size: 40251392 bytes (38 MiB, 317 LEBs), max 327 LEBs, journal size 2031616 bytes (1 MiB, 16 LEBs) [ 8.606462] UBIFS (ubi0:2): reserved for root: 1901172 bytes (1856 KiB) [ 8.606471] UBIFS (ubi0:2): media format: w5/r0 (latest is w5/r0), UUID 8B8CF6BD-E01D-4397-B908-049159B07EC1, small LPT model [ 8.613051] mount_root: switching to ubifs overlay [ 8.617141] overlayfs: null uuid detected in lower fs '/', falling back to xino=off,index=off,nfs_export=off. [ 8.622265] urandom-seed: Seeding with /etc/urandom.seed [ 8.755850] nss-dp 3a001800.dp5 uplink: PHY Link is down [ 8.760924] procd: - early - [ 8.761019] procd: - watchdog - [ 9.337235] procd: - watchdog - [ 9.338783] procd: - ubus - [ 9.490639] procd: - init - [ 9.832941] kmodloader: loading kernel modules from /etc/modules.d/* [ 9.988333] Loading modules backported from Linux version v6.16-0-g038d61fd6422 [ 9.988354] Backport generated by backports.git v6.1.145-1-47-g6194bf852a3e [ 9.995956] NET: Registered PF_QIPCRTR protocol family [ 10.060019] urngd: v1.0.2 started. [ 10.124045] PPP generic driver version 2.4.2 [ 10.125246] NET: Registered PF_PPPOX protocol family [ 10.164537] ath11k c000000.wifi: ipq8074 hw2.0 [ 10.164559] ath11k c000000.wifi: FW memory mode: 0 [ 10.221008] remoteproc remoteproc0: powering up cd00000.q6v5_wcss [ 10.221445] remoteproc remoteproc0: Booting fw image IPQ8074/q6_fw.mdt, size 668 [ 11.457305] remoteproc remoteproc0: remote processor cd00000.q6v5_wcss is now up [ 11.501279] ath11k c000000.wifi: qmi fail to get qcom,m3-dump-addr, ignore m3 dump mem req [ 11.508762] ath11k c000000.wifi: chip_id 0x0 chip_family 0x0 board_id 0xff soc_id 0xffffffff [ 11.508777] ath11k c000000.wifi: fw_version 0x290b84a5 fw_build_timestamp 2024-09-23 11:32 fw_build_id WLAN.HK.2.9.0.1-02146-QCAHKSWPL_SILICONZ-1 [ 11.644461] remoteproc remoteproc0: stopped remote processor cd00000.q6v5_wcss [ 11.644492] remoteproc remoteproc0: powering up cd00000.q6v5_wcss [ 11.644679] remoteproc remoteproc0: Booting fw image IPQ8074/q6_fw.mdt, size 668 [ 11.992572] remoteproc remoteproc0: remote processor cd00000.q6v5_wcss is now up [ 11.996778] kmodloader: done loading kernel modules from /etc/modules.d/* [ 12.036820] ath11k c000000.wifi: qmi fail to get qcom,m3-dump-addr, ignore m3 dump mem req [ 12.044305] ath11k c000000.wifi: chip_id 0x0 chip_family 0x0 board_id 0xff soc_id 0xffffffff [ 12.044336] ath11k c000000.wifi: fw_version 0x290b84a5 fw_build_timestamp 2024-09-23 11:32 fw_build_id WLAN.HK.2.9.0.1-02146-QCAHKSWPL_SILICONZ-1 [ 12.365835] ath11k c000000.wifi: htt event 48 not handled ...

qualcommax, ipq807x, 4core, 256nand, 1024ram, 2port, GigabitEthernet, 2.5GigabitEthernet, vlan, wlan, 802.11ax, internalantenna, 0USB, serial, 1button, u-boot, ceiling, PoE, 12v powered

qualcommax ipq807x 4core 256nand 1024ram 2port gigabitethernet 2.5gigabitethernet vlan wlan 802.11ax internalantenna 0usb serial 1button u-boot ceiling PoE 12v powered
