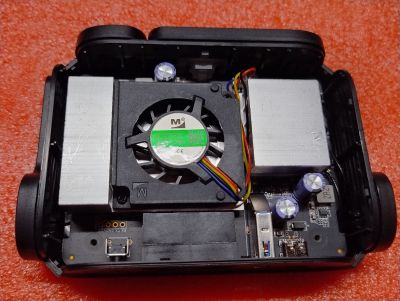

COMFAST CF-WR632AX

[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034] [ 0.000000] Linux version 5.4.281 (mwz@ubuntu) (gcc version 8.4.0 (OpenWrt GCC 8.4.0 r0-1674868)) #0 SMP Wed Jun 11 05:52:50 2025 [ 0.000000] Machine model: MediaTek MT7981 RFB [ 0.000000] earlycon: uart8250 at MMIO32 0x0000000011002000 (options '') [ 0.000000] printk: bootconsole [uart8250] enabled [ 0.000000] On node 0 totalpages: 130048 [ 0.000000] DMA32 zone: 2048 pages used for memmap [ 0.000000] DMA32 zone: 0 pages reserved [ 0.000000] DMA32 zone: 130048 pages, LIFO batch:31 [ 0.000000] psci: probing for conduit method from DT. [ 0.000000] psci: PSCIv1.1 detected in firmware. [ 0.000000] psci: Using standard PSCI v0.2 function IDs [ 0.000000] psci: MIGRATE_INFO_TYPE not supported. [ 0.000000] psci: SMC Calling Convention v1.0 [ 0.000000] percpu: Embedded 20 pages/cpu s44376 r8192 d29352 u81920 [ 0.000000] pcpu-alloc: s44376 r8192 d29352 u81920 alloc=20*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [ 0.000000] Detected VIPT I-cache on CPU0 [ 0.000000] CPU features: detected: GIC system register CPU interface [ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 128000 [ 0.000000] Kernel command line: console=ttyS0,115200n1 loglevel=8 earlycon=uart8250,mmio32,0x11002000 [ 0.000000] Dentry cache hash table entries: 65536 (order: 7, 524288 bytes, linear) [ 0.000000] Inode-cache hash table entries: 32768 (order: 6, 262144 bytes, linear) [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [ 0.000000] Memory: 490756K/520192K available (7486K kernel code, 554K rwdata, 2128K rodata, 448K init, 299K bss, 29436K reserved, 0K cma-reserved) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1 [ 0.000000] rcu: Hierarchical RCU implementation. [ 0.000000] rcu: CONFIG_RCU_FANOUT set to non-default value of 32. [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies. [ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0 [ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode [ 0.000000] GICv3: 640 SPIs implemented [ 0.000000] GICv3: 0 Extended SPIs implemented [ 0.000000] GICv3: Distributor has no Range Selector support [ 0.000000] GICv3: 16 PPIs implemented [ 0.000000] GICv3: no VLPI support, no direct LPI support [ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c080000 [ 0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns [ 0.000004] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns [ 0.008211] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=52000) [ 0.018532] pid_max: default: 32768 minimum: 301 [ 0.023259] Mount-cache hash table entries: 1024 (order: 1, 8192 bytes, linear) [ 0.030609] Mountpoint-cache hash table entries: 1024 (order: 1, 8192 bytes, linear) [ 0.039344] ASID allocator initialised with 65536 entries [ 0.044852] rcu: Hierarchical SRCU implementation. [ 0.050009] smp: Bringing up secondary CPUs ... [ 0.054909] Detected VIPT I-cache on CPU1 [ 0.054929] GICv3: CPU1: found redistributor 1 region 0:0x000000000c0a0000 [ 0.054953] CPU1: Booted secondary processor 0x0000000001 [0x410fd034] [ 0.055018] smp: Brought up 1 node, 2 CPUs [ 0.076634] SMP: Total of 2 processors activated. [ 0.081360] CPU features: detected: 32-bit EL0 Support [ 0.086523] CPU features: detected: CRC32 instructions [ 0.091792] CPU: All CPU(s) started at EL2 [ 0.095915] alternatives: patching kernel code [ 0.102981] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns [ 0.112795] futex hash table entries: 512 (order: 3, 32768 bytes, linear) [ 0.119702] pinctrl core: initialized pinctrl subsystem [ 0.125642] NET: Registered protocol family 16 [ 0.130334] DMA: preallocated 256 KiB pool for atomic allocations [ 0.154661] SCSI subsystem initialized [ 0.158583] libata version 3.00 loaded. [ 0.162599] usbcore: registered new interface driver usbfs [ 0.168216] usbcore: registered new interface driver hub [ 0.173593] usbcore: registered new device driver usb [ 0.179549] Bluetooth: Core ver 2.22 [ 0.183199] NET: Registered protocol family 31 [ 0.187669] Bluetooth: HCI device and connection manager initialized [ 0.194060] Bluetooth: HCI socket layer initialized [ 0.198961] Bluetooth: L2CAP socket layer initialized [ 0.204043] Bluetooth: SCO socket layer initialized [ 0.209336] rbus 18000000.wbsys: PCI host bridge to bus 0000:00 [ 0.215299] pci_bus 0000:00: root bus resource [mem 0x18000000-0x18ffffff] [ 0.222210] pci_bus 0000:00: root bus resource [bus 00-ff] [ 0.227722] pci_bus 0000:00: scanning bus [ 0.231762] pci 0000:00:00.0: [14c3:7981] type 00 class 0x000280 [ 0.237807] pci 0000:00:00.0: reg 0x10: [mem 0x18000000-0x1800000f 64bit] [ 0.244630] pci 0000:00:00.0: reg 0x18: [mem 0x00000000-0x0000000f] [ 0.250929] pci 0000:00:00.0: reg 0x1c: [mem 0x00000000-0x0000000f] [ 0.257228] pci 0000:00:00.0: reg 0x20: [mem 0x00000000-0x0000000f] [ 0.263527] pci 0000:00:00.0: reg 0x24: [mem 0x00000000-0x0000000f] [ 0.270835] pci_bus 0000:00: fixups for bus [ 0.275045] pci_bus 0000:00: bus scan returning with max=00 [ 0.281642] clocksource: Switched to clocksource arch_sys_counter [ 0.288417] thermal_sys: Registered thermal governor 'fair_share' [ 0.288420] thermal_sys: Registered thermal governor 'bang_bang' [ 0.294560] thermal_sys: Registered thermal governor 'step_wise' [ 0.300598] thermal_sys: Registered thermal governor 'user_space' [ 0.306634] thermal_sys: Registered thermal governor 'power_allocator' [ 0.313064] NET: Registered protocol family 2 [ 0.324108] IP idents hash table entries: 8192 (order: 4, 65536 bytes, linear) [ 0.331803] tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 4096 bytes, linear) [ 0.340248] TCP established hash table entries: 4096 (order: 3, 32768 bytes, linear) [ 0.348059] TCP bind hash table entries: 4096 (order: 4, 65536 bytes, linear) [ 0.355281] TCP: Hash tables configured (established 4096 bind 4096) [ 0.361738] UDP hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.368313] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.375419] NET: Registered protocol family 1 [ 0.379823] PCI: CLS 0 bytes, default 64 [ 0.384584] workingset: timestamp_bits=46 max_order=17 bucket_order=0 [ 0.394066] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.399954] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 0.442935] Debug interface error [ 0.447005] phy phy-usb-phy@11e10000.1: type_sw - reg 0x218, index 0 [ 0.463547] Serial: 8250/16550 driver, 3 ports, IRQ sharing disabled [ 0.470693] printk: console [ttyS0] disabled [ 0.495110] 11002000.serial: ttyS0 at MMIO 0x11002000 (irq = 12, base_baud = 2500000) is a ST16650V2 [ 0.504323] printk: console [ttyS0] enabled [ 0.512683] printk: bootconsole [uart8250] disabled [ 0.523060] cacheinfo: Unable to detect cache hierarchy for CPU 0 [ 0.531554] loop: module loaded [ 0.534849] mediatek,mt2701-ice_debug ice_debug: get dbg_sel clock fail: -2 [ 0.541816] mediatek,mt2701-ice_debug: probe of ice_debug failed with error -2 [ 0.551213] spi-nand spi0.0: WINBOND W25N01GV SPI NAND was found. [ 0.557328] spi-nand spi0.0: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 64 [ 0.568507] [mtk_hw_init] reset_lock:0, force:1 [ 0.573099] [mtk_hw_init] execute fe cold reset [ 0.588665] mtk_soc_eth 15100000.ethernet: MDC is running on 2500000 Hz [ 0.659890] Intel GPY211 PHY mdio-bus:05: driver wait 0 ms for phy ready! [ 0.666684] Intel GPY211 PHY mdio-bus:05: not config "maxlinear,led-reg" parameter [ 0.674732] mtk_soc_eth 15100000.ethernet: generated random MAC address 4a:a5:f5:d8:58:4c [ 0.683600] mtk_soc_eth 15100000.ethernet eth0: mediatek frame engine at 0xffffffc011b00000, irq 79 [ 0.692701] mtk_soc_eth 15100000.ethernet: generated random MAC address 8a:f8:29:5b:28:24 [ 0.701568] mtk_soc_eth 15100000.ethernet eth1: mediatek frame engine at 0xffffffc011b00000, irq 79 [ 0.710620] (unnamed net_device) (dummy): netif_napi_add() called with weight 256 [ 0.718639] usbcore: registered new interface driver r8152 [ 0.724133] hso: drivers/net/usb/hso.c: Option Wireless [ 0.729397] usbcore: registered new interface driver hso [ 0.734730] usbcore: registered new interface driver ax88179_178a [ 0.740837] usbcore: registered new interface driver cdc_ether [ 0.746687] usbcore: registered new interface driver cdc_eem [ 0.752364] usbcore: registered new interface driver rndis_host [ 0.758321] usbcore: registered new interface driver cdc_ncm [ 0.763996] usbcore: registered new interface driver cdc_mbim [ 0.769913] xhci-mtk 11200000.xhci: 11200000.xhci supply vbus not found, using dummy regulator [ 0.778554] xhci-mtk 11200000.xhci: 11200000.xhci supply vusb33 not found, using dummy regulator [ 0.787447] phy phy-usb-phy@11e10000.0: try to get sw efuse [ 0.793021] phy phy-usb-phy@11e10000.1: try to get sw efuse [ 0.798584] phy phy-usb-phy@11e10000.1: try to get sw efuse+ [ 0.804257] phy phy-usb-phy@11e10000.1: u3 efuse - intr 29, rx_imp f, tx_imp e [ 0.811508] phy_efuse_set set efuse, tx_imp e, rx_imp f intr 29 [ 0.817508] xhci-mtk 11200000.xhci: xHCI Host Controller [ 0.822832] xhci-mtk 11200000.xhci: new USB bus registered, assigned bus number 1 [ 0.833325] xhci-mtk 11200000.xhci: hcc params 0x01403f99 hci version 0x110 quirks 0x0000000000210010 [ 0.842570] xhci-mtk 11200000.xhci: irq 89, io mem 0x11200000 [ 0.848400] xhci-mtk 11200000.xhci: xHCI Host Controller [ 0.853711] xhci-mtk 11200000.xhci: new USB bus registered, assigned bus number 2 [ 0.861192] xhci-mtk 11200000.xhci: Host supports USB 3.2 Enhanced SuperSpeed [ 0.868721] hub 1-0:1.0: USB hub found [ 0.872530] hub 1-0:1.0: 1 port detected [ 0.876754] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM. [ 0.885178] hub 2-0:1.0: USB hub found [ 0.888972] hub 2-0:1.0: 1 port detected [ 0.893283] usbcore: registered new interface driver cdc_wdm [ 0.899125] usbcore: registered new interface driver uas [ 0.904506] usbcore: registered new interface driver usb-storage [ 0.910629] i2c /dev entries driver [ 0.915532] mtk-wdt 1001c000.watchdog: Watchdog enabled (timeout=31 sec, nowayout=0) [ 0.923536] device-mapper: ioctl: 4.41.0-ioctl (2019-09-16) initialised: dm-devel@redhat.com [ 0.932123] Bluetooth: HCI UART driver ver 2.3 [ 0.936620] Bluetooth: HCI UART protocol H4 registered [ 0.941752] Bluetooth: HCI UART protocol BCSP registered [ 0.947153] Bluetooth: HCI UART protocol Broadcom registered [ 0.952838] Bluetooth: HCI UART protocol QCA registered [ 0.960687] NET: Registered protocol family 10 [ 0.965972] Segment Routing with IPv6 [ 0.969755] NET: Registered protocol family 17 [ 0.974246] Bridge firewalling registered [ 0.978390] 8021q: 802.1Q VLAN Support v1.8 [ 0.992163] nmbm nmbm_spim_nand: Signature found at block 1023 [0x07fe0000] [ 0.999940] nmbm nmbm_spim_nand: First info table with writecount 0 found in block 960 [ 1.010113] nmbm nmbm_spim_nand: Second info table with writecount 0 found in block 963 [ 1.018121] nmbm nmbm_spim_nand: NMBM has been successfully attached [ 1.024754] 5 fixed-partitions partitions found on MTD device nmbm_spim_nand [ 1.031802] Creating 5 MTD partitions on "nmbm_spim_nand": [ 1.037283] 0x000000000000-0x000000100000 : "BL2" [ 1.042552] 0x000000100000-0x000000180000 : "u-boot-env" [ 1.048395] 0x000000180000-0x000000380000 : "Factory" [ 1.053976] 0x000000380000-0x000000580000 : "FIP" [ 1.059186] 0x000000580000-0x000004580000 : "ubi" [ 1.065003] UBI: auto-attach mtd5 [ 1.068338] ubi0: attaching mtd5 [ 1.255510] ubi0: scanning is finished [ 1.263972] ubi0: attached mtd5 (name "ubi", size 64 MiB) [ 1.269385] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 1.276258] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 1.283037] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 1.289988] ubi0: good PEBs: 512, bad PEBs: 0, corrupted PEBs: 0 [ 1.295986] ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128 [ 1.303197] ubi0: max/mean erase counter: 6/3, WL threshold: 4096, image sequence number: 1675675700 [ 1.312318] ubi0: available PEBs: 0, total reserved PEBs: 512, PEBs reserved for bad PEB handling: 19 [ 1.321531] ubi0: background thread "ubi_bgt0d" started, PID 749 [ 1.322229] block ubiblock0_1: created from ubi0:1(rootfs) [ 1.333028] ubiblock: device ubiblock0_1 (rootfs) set to be root filesystem [ 1.339990] hctosys: unable to open rtc device (rtc0) [ 1.345223] clk: Disabling unused clocks [ 1.351886] VFS: Mounted root (squashfs filesystem) readonly on device 253:0. [ 1.359265] Freeing unused kernel memory: 448K [ 1.377679] Run /sbin/init as init process [ 1.579804] init: Console is alive [ 1.583344] init: - watchdog - [ 2.301329] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 2.331056] conninfra@(mtk_conninfra_drv_init:644) Before platform_driver_register [ 2.338759] Get Index(0-TOP_MISC_BASE) phy_addr(0x11d10000) vir_addr=(0xffffffc010bcf000) size=(0x1000) [ 2.348148] Get Index(1-TOPRGU_BASE) phy_addr(0x1001c000) vir_addr=(0xffffffc010bd1000) size=(0x1000) [ 2.357357] Get Index(2-GPIO_BASE) phy_addr(0x11d00000) vir_addr=(0xffffffc010bdd000) size=(0x1000) [ 2.366391] Get Index(3-IOCFG_TR_BASE) phy_addr(0x11f00000) vir_addr=(0xffffffc010be5000) size=(0x1000) [ 2.375772] Get Index(4-IOCFG_TL_BASE) phy_addr(0x11f10000) vir_addr=(0xffffffc010be7000) size=(0x1000) [ 2.385157] Get Index(5-INFRACFG_AO_BASE) phy_addr(0x10003000) vir_addr=(0xffffffc010be9000) size=(0x1000) [ 2.394798] Get Index(6-CONN_INFRA_CFG_BASE) phy_addr(0x18001000) vir_addr=(0xffffffc010beb000) size=(0x1000) [ 2.404700] Get Index(7-CONN_INFRA_SYSRAM_BASE) phy_addr(0x18050000) vir_addr=(0xffffffc010bed000) size=(0x1000) [ 2.414861] Get Index(8-CONN_INFRA_CLKGEN_ON_TOP_BASE) phy_addr(0x18009000) vir_addr=(0xffffffc010bef000) size=(0x1000) [ 2.425633] Get Index(9-CONN_HOST_CSR_TOP_BASE) phy_addr(0x18060000) vir_addr=(0xffffffc010bf1000) size=(0x1000) [ 2.435794] Get Index(10-CONN_INFRA_BUS_CR_BASE) phy_addr(0x1800e000) vir_addr=(0xffffffc010bf3000) size=(0x1000) [ 2.446042] Get Index(11-CONN_INFRA_RGU_BASE) phy_addr(0x18000000) vir_addr=(0xffffffc010bf5000) size=(0x1000) [ 2.456030] Get Index(12-CONN_WT_SLP_CTL_REG_BASE) phy_addr(0x18005000) vir_addr=(0xffffffc010bfd000) size=(0x1000) [ 2.466452] Get Index(13-INST2_CONN_WT_SLP_CTL_REG_BASE) phy_addr(0x18085000) vir_addr=(0xffffffc010e46000) size=(0x1000) [ 2.477395] Get Index(14-CONN_RF_SPI_MST_REG_BASE) phy_addr(0x18004000) vir_addr=(0xffffffc010e48000) size=(0x1000) [ 2.487825] Get Index(15-INST2_CONN_RF_SPI_MST_REG_BASE) phy_addr(0x18084000) vir_addr=(0xffffffc010e4a000) size=(0x1000) [ 2.498768] Get Index(16-CONN_SEMAPHORE_BASE) phy_addr(0x18070000) vir_addr=(0xffffffc010e90000) size=(0x10000) [ 2.508843] Get Index(17-CONN_AFE_CTL_BASE) phy_addr(0x18003000) vir_addr=(0xffffffc010e4c000) size=(0x1000) [ 2.518658] Get Index(18-CONN_AFE_CTL_2ND_BASE) phy_addr(0x18083000) vir_addr=(0xffffffc010e4e000) size=(0x1000) [ 2.528821] Get Index(19-WF_TOP_SLPPROT_ON_BASE) phy_addr(0x184c0000) vir_addr=(0xffffffc010eb0000) size=(0x10000) [ 2.539156] Get Index(20-WF_TOP_CFG_BASE) phy_addr(0x184b0000) vir_addr=(0xffffffc010e50000) size=(0x1000) [ 2.548796] Get Index(21-WF_MCU_CONFIG_LS_BASE) phy_addr(0x184f0000) vir_addr=(0xffffffc010e52000) size=(0x1000) [ 2.558957] Get Index(22-WF_MCU_BUS_CR_BASE) phy_addr(0x18400000) vir_addr=(0xffffffc010e54000) size=(0x1000) [ 2.568857] Get Index(23-WF_MCUSYS_INFRA_BUS_FULL_U_DEBUG_CTRL_AO_BASE) phy_addr(0x18500000) vir_addr=(0xffffffc010e56000) size=(0x1000) [ 2.581102] Get Index(24-WF_TOP_CFG_ON_BASE) phy_addr(0x184c0000) vir_addr=(0xffffffc010ed0000) size=(0x10000) [ 2.591091] conninfra@(consys_plt_hw_init:162) adie_cfg_type = 1, one_adie_dbdc = 1 [ 2.598742] [emi_mng_init] gConEmiPhyBase = [0x47c80000] size = [0x100000] fw size = [0x100000] ops=[(____ptrval____)] [ 2.609522] conninfra@(mtk_conninfra_drv_init:650) After platform_driver_register [ 2.617387] ConnInfra Dev: init (0) [ 2.622332] conninfra@(_consys_polling_chipid_int:306) Read CONNSYS HW IP version successfully! (0x02090000) [ 2.632161] conninfra@(connsys_d_die_cfg:377) D-die efuse: 0x00000000 [ 2.639617] conninfra@(_connsys_a_die_cfg_7976:932) adie_idx[0], A-die CHIP ID = 0x7976, HW Version = 0x8b00 [ 2.650436] conninfra@(consys_spi_write_nolock:513) addr=0x0a00, val=0xffffffff [ 2.658738] conninfra@(consys_spi_write_nolock:513) addr=0x04ac, val=0x0000001c [ 2.667040] conninfra@(consys_spi_write_nolock:513) addr=0x0144, val=0x00000002 [ 2.676349] conninfra@(consys_spi_write_nolock:513) addr=0x0148, val=0x00000000 [ 2.685658] conninfra@(consys_spi_write_nolock:513) addr=0x0148, val=0x43a60000 [ 2.698998] conninfra@(connsys_a_die_efuse_read_nolock:749) efuse = [0x00000001, 0x00c40000, 0x008700bb, 0x00000000] [ 2.710509] conninfra@(consys_spi_write_nolock:513) addr=0x0144, val=0x00000002 [ 2.719821] conninfra@(consys_spi_write_nolock:513) addr=0x0148, val=0x23a6003a [ 2.729131] conninfra@(consys_spi_write_nolock:513) addr=0x0148, val=0x63a7003a [ 2.742470] conninfra@(connsys_a_die_efuse_read_nolock:749) efuse = [0x00000001, 0x00c40000, 0x008700bb, 0x00000000] [ 2.753981] conninfra@(consys_spi_write_nolock:513) addr=0x0144, val=0x00000002 [ 2.763290] conninfra@(consys_spi_write_nolock:513) addr=0x0148, val=0x23a7003a [ 2.772599] conninfra@(consys_spi_write_nolock:513) addr=0x0148, val=0x63ac003a [ 2.785938] conninfra@(connsys_a_die_efuse_read_nolock:749) efuse = [0x00000001, 0x00c40000, 0x008700bb, 0x00000000] [ 2.797448] conninfra@(consys_spi_write_nolock:513) addr=0x0038, val=0x4a563b00 [ 2.805751] conninfra@(consys_spi_write_nolock:513) addr=0x065c, val=0x1d59080f [ 2.814053] conninfra@(consys_spi_write_nolock:513) addr=0x0664, val=0x34c00fe0 [ 2.822359] conninfra@(consys_spi_write_nolock:513) addr=0x0070, val=0x88888005 [ 2.831621] conninfra@(consys_spi_write_nolock:513) addr=0x0070, val=0x00000005 [ 2.839857] conninfra@(_consys_polling_chipid_int:306) Read CONNSYS HW IP version successfully! (0x02090000) [ 2.849669] conninfra@(_consys_hw_conninfra_wakeup:470) conninfra_wakeup refcnt=[0]->[1] wakeup!! [ 2.858531] conninfra@(_consys_hw_conninfra_sleep:490) conninfra_sleep refcnt=[1]->[0] sleep!! [ 2.867130] conninfra@(opfunc_power_on_internal:241) [Conninfra Pwr On] BT=[0] FM=[0] GPS=[0] WF=[0] CONNINFRA=[1] [ 2.892532] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver [ 2.899838] fsl-ehci: Freescale EHCI Host controller driver [ 2.906213] ehci-platform: EHCI generic platform driver [ 2.913239] ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver [ 2.920107] ohci-platform: OHCI generic platform driver [ 2.929876] mediatek_soc_hnat 15100000.hnat: wan = eth0 [ 2.935110] mediatek_soc_hnat 15100000.hnat: lan = eth1 [ 2.940329] mediatek_soc_hnat 15100000.hnat: lan2 = eth2 [ 2.945632] mediatek_soc_hnat 15100000.hnat: ppd = eth0 [ 2.950849] mediatek_soc_hnat 15100000.hnat: gmac num = 2 [ 2.956238] mediatek_soc_hnat 15100000.hnat: ppe num = 1 [ 2.962059] mediatek_soc_hnat 15100000.hnat: PPE0 entry number = 8192 [ 2.979051] mediatek_soc_hnat 15100000.hnat: PPE0 hwnat start [ 2.984850] hnat roaming work enable [ 2.991720] warp_module_init(): module init and register callback for warp [ 2.998624] create warp_ctrl ok!!! [ 3.002075] wed_get_slot_map(): assign slot_id:0 for entry: 0! [ 3.007918] wed_get_slot_map(): assign slot_id:1 for entry: 1! [ 3.014321] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 3.030249] init: - preinit - [ 3.382197] mtk_soc_eth 15100000.ethernet eth1: PHY [mdio-bus:00] driver [Generic PHY] [ 3.382318] random: procd: uninitialized urandom read (4 bytes read) [ 3.390135] mtk_soc_eth 15100000.ethernet eth1: configuring for phy/gmii link mode [ 3.420126] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode [ 3.533679] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 2.5Gbps/Full - flow control rx/tx [ 3.542325] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready [ 6.511237] mount_root: loading kmods from internal overlay [ 6.530886] kmodloader: loading kernel modules from //etc/modules-boot.d/* [ 6.539493] kmodloader: done loading kernel modules from //etc/modules-boot.d/* [ 6.625668] random: crng init done [ 7.276621] UBIFS (ubi0:2): Mounting in unauthenticated mode [ 7.282383] UBIFS (ubi0:2): background thread "ubifs_bgt0_2" started, PID 961 [ 7.311294] UBIFS (ubi0:2): recovery needed [ 7.398655] UBIFS (ubi0:2): recovery completed [ 7.403184] UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name "rootfs_data" [ 7.411010] UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 7.420922] UBIFS (ubi0:2): FS size: 40505344 bytes (38 MiB, 319 LEBs), journal size 2031616 bytes (1 MiB, 16 LEBs) [ 7.431346] UBIFS (ubi0:2): reserved for root: 1913167 bytes (1868 KiB) [ 7.437956] UBIFS (ubi0:2): media format: w5/r0 (latest is w5/r0), UUID 80243839-8A42-4455-9E20-7611D945A81A, small LPT model [ 7.450306] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab [ 7.461569] block: extroot: not configured [ 7.465802] UBIFS (ubi0:2): un-mount UBI device 0 [ 7.470516] UBIFS (ubi0:2): background thread "ubifs_bgt0_2" stops [ 7.479342] UBIFS (ubi0:2): Mounting in unauthenticated mode [ 7.485090] UBIFS (ubi0:2): background thread "ubifs_bgt0_2" started, PID 964 [ 7.498212] mtk_soc_eth 15100000.ethernet eth1: Link is Up - 1Gbps/Full - flow control rx/tx [ 7.506730] IPv6: ADDRCONF(NETDEV_CHANGE): eth1: link becomes ready [ 7.541756] UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name "rootfs_data" [ 7.549601] UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 7.559504] UBIFS (ubi0:2): FS size: 40505344 bytes (38 MiB, 319 LEBs), journal size 2031616 bytes (1 MiB, 16 LEBs) [ 7.569968] UBIFS (ubi0:2): reserved for root: 1913167 bytes (1868 KiB) [ 7.576576] UBIFS (ubi0:2): media format: w5/r0 (latest is w5/r0), UUID 80243839-8A42-4455-9E20-7611D945A81A, small LPT model [ 7.590409] mount_root: loading kmods from internal overlay [ 7.606459] kmodloader: loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/* [ 7.616140] kmodloader: done loading kernel modules from /tmp/overlay/upper/etc/modules-boot.d/* [ 8.266810] block: attempting to load /tmp/ubifs_cfg/upper/etc/config/fstab [ 8.276329] block: extroot: not configured [ 8.281857] mount_root: switching to ubifs overlay [ 8.293523] urandom-seed: Seeding with /etc/urandom.seed [ 8.346788] procd: - early - [ 8.349740] procd: - watchdog - [ 8.886015] procd: - watchdog - [ 8.890411] procd: - ubus - [ 8.945670] procd: - init - [ 9.304972] kmodloader: loading kernel modules from /etc/modules.d/* [ 9.350285] RPC: Registered named UNIX socket transport module. [ 9.356225] RPC: Registered udp transport module. [ 9.360932] RPC: Registered tcp transport module. [ 9.365630] RPC: Registered tcp NFSv4.1 backchannel transport module. [ 9.383637] ntfs: driver 2.1.32 [Flags: R/O MODULE]. [ 9.424696] l2tp_core: L2TP core driver, V2.0 [ 9.430592] l2tp_netlink: L2TP netlink interface [ 9.437097] gre: GRE over IPv4 demultiplexor driver [ 9.444906] ip_gre: GRE over IPv4 tunneling driver [ 9.467034] Installing knfsd (copyright (C) 1996 okir@monad.swb.de). [ 9.552813] GACT probability on [ 9.557090] Mirror/redirect action on [ 9.573060] u32 classifier [ 9.574046] urngd: v1.0.2 started. [ 9.575803] input device check on [ 9.582812] Actions configured [ 9.609495] Simple TC action Loaded [ 9.635867] fuse: init (API version 7.31) [ 9.646439] usbcore: registered new interface driver cdc_subset [ 9.655043] usbcore: registered new interface driver dm9601 [ 9.698520] usbcore: registered new interface driver huawei_cdc_ncm [ 9.715255] Current mapfilter version v3.0.1.2 [ 10.914419] mt_wifi: module license 'Proprietary' taints kernel. [ 10.920437] Disabling lock debugging due to kernel taint [ 10.967805] conninfra@(conninfra_pwr_on:120) [conninfra_pwr_on] drv=[3] [ 10.975371] conninfra@(_consys_polling_chipid_int:306) Read CONNSYS HW IP version successfully! (0x02090000) [ 10.993238] Adie Type: 0x7976 [ 10.993240] SKU Type: 3000 [ 10.997158] conninfra@(opfunc_power_on_internal:241) [Conninfra Pwr On] BT=[0] FM=[0] GPS=[0] WF=[1] CONNINFRA=[1] [ 11.011255] WiFi@C12L1,get_dbg_setting_by_profile() 4480: debug level setting=INDEX0_debug_level not found!! [ 11.021091] WiFi@C12L1,get_dbg_setting_by_profile() 4503: debug option setting=INDEX0_debug_option not found!! [ 11.031145] mt_rbus 0000:00:00.0: runtime IRQ mapping not provided by arch [ 11.046002] mt7981_init()--> [ 11.048878] Use the default iPAiLNA bin image! [ 11.053375] <--mt7981_init() [ 11.056277] RtmpRaDevCtrlInit(): MCS_LUT not used becasue MacTb size(288) > 128! [ 11.063793] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX1 [ 11.071112] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX2 [ 11.078427] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX3 [ 11.085742] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX4 [ 11.093058] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX5 [ 11.100374] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX6 [ 11.107697] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX7 [ 11.115013] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX8 [ 11.122329] WiFi@C12L1,match_index_by_chipname() 758: not find chip name INDEX9 [ 11.129634] WiFi@C12L2,match_index_by_chipname() 763: Not find slot id, back to old rule. [ 11.137920] msta_ifname not found [ 11.150564] -->mtfwd_init(ver:2.0) [ 11.150605] <-- [ 11.154854] mtk_warp_proxy: module uses symbols from proprietary module mt_wifi, inheriting taint. [ 11.167677] -->mtqos_init(), mtqos ver:1.0 [ 11.167733] <-- [ 11.212557] usbcore: registered new interface driver usbserial_generic [ 11.219177] usbserial: USB Serial support registered for generic [ 11.258705] xt_time: kernel timezone is -0000 [ 11.269620] PPP generic driver version 2.4.2 [ 11.275247] PPP MPPE Compression module registered [ 11.281478] NET: Registered protocol family 24 [ 11.287295] PPTP driver version 0.8.5 [ 11.296354] l2tp_ppp: PPPoL2TP kernel driver, V2.0 [ 11.302451] usbcore: registered new interface driver option [ 11.308164] usbserial: USB Serial support registered for GSM modem (1-port) [ 11.317213] kmodloader: done loading kernel modules from /etc/modules.d/* [ 13.251644] mtk_soc_eth 15100000.ethernet eth1: Link is Down [ 13.271657] mtk_soc_eth 15100000.ethernet eth0: Link is Down [ 13.302814] mtk_soc_eth 15100000.ethernet eth1: PHY [mdio-bus:00] driver [Generic PHY] [ 13.310789] mtk_soc_eth 15100000.ethernet eth1: configuring for phy/gmii link mode [ 13.320414] br-lan: port 1(eth1) entered blocking state [ 13.325697] br-lan: port 1(eth1) entered disabled state [ 13.331161] device eth1 entered promiscuous mode [ 13.345852] mtk_soc_eth 15100000.ethernet eth0: configuring for fixed/2500base-x link mode [ 13.461710] mtk_soc_eth 15100000.ethernet eth0: Link is Up - 2.5Gbps/Full - flow control rx/tx [ 13.470740] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready [ 13.889119] /dev/ubi0_1: Can't open blockdev [ 15.780414] sh (3983): drop_caches: 3 [ 17.418221] mtk_soc_eth 15100000.ethernet eth1: Link is Up - 1Gbps/Full - flow control rx/tx [ 17.426760] br-lan: port 1(eth1) entered blocking state [ 17.432018] br-lan: port 1(eth1) entered forwarding state [ 17.437949] IPv6: ADDRCONF(NETDEV_CHANGE): br-lan: link becomes ready [ 17.746175] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!! [ 17.837785] 7981@C12L1,rt28xx_ap_ioctl() 833: interface is down, cmd [8be1] return!!! [ 29.037187] 7981@C01L2,RTMP_COM_IoctlHandle() 1517: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_INIT [ 29.045521] msta_ifname not found [ 29.049287] client_get_axi_slot_id(): wrong BUS_TYPE [ 29.054252] warp_cap_support(): chip_id=7981 is in WHNAT support list [ 29.060689] warp_entry_acquire(): bus slot:0, hook to WARP, entry id=0, entry: 00000000f96c12f6 [ 29.069380] client_hif_specific_get(): hw->base_phy_addr 0x18000000!! [ 29.075814] client_chip_specific_get(): 0x7981 chip id 0x7981!! [ 29.081831] warp_entry_get_by_pdev(): return entry[0] [ 29.087054] warp_msg_register():warp,pid,5462,id,0,wed_idx,0 [ 29.092813] warp_dev0 15010000.wed: Using 32bit DMA for streaming map [ 29.099253] warp_dev0 15010000.wed: Using 32bit DMA for coherent map [ 29.105643] wed_init(0): res_start = 0x15010000, size = 1000, irq=7,base_addr=0xffffffc011afb000 [ 29.114853] wed_ring_init(): wed tx ring init result = 0 [ 29.120362] wed_ring_init(): wed rx ring init result = 0 [ 29.132861] create wed ok!!! [ 29.135786] wdma_init(): wdma(0) base_addr=0xffffffc011b84800, base_phy_addr=0x15104800 [ 29.144635] warp_woif_bus_init_hw(): bus:0000000068871d38, txring: 20, pa: 0x0000000056ecc000, 0x0000000056ecc000, 24, 28, 3c [ 29.155949] warp_woif_bus_init_hw(): bus:0000000068871d38, rxring: 50, pa: 0x000000005689e000, 0x000000005689e000, 54, 58, 6c [ 29.167284] get_region_info(): wed_idx = 0, base_addr = 0x000000006092b341, size = 0x40000, res.start = 0x47d80000, shared:0 [ 29.178504] get_region_info(): wed_idx = 0, base_addr = 0x00000000fbdf52db, size = 0x8000, res.start = 0x151e0000, shared:0 [ 29.189675] get_region_info(): wed_idx = 0, base_addr = 0x000000002f1246b7, size = 0x240000, res.start = 0x47dc0000, shared:1 [ 29.200982] get_region_info(): wed_idx = 0, base_addr = 0x00000000e93327ec, size = 0x1000, res.start = 0x15194000, shared:0 [ 29.212103] warp_fwdl_mcu_mode(): mcu mode, need fwdl [ 29.258219] ########## WO Firmware ########## [ 29.262597] Chip ID: 0x0000 [ 29.265379] ECO version:0 [ 29.268012] Version: DEV_000000 [ 29.271153] Build date: 20231228201845 [ 29.274897] Total region:3 [ 29.277591] ################################# [ 29.281942] Parsing tailer region 0 [ 29.285417] Target address: 0x151e0000 [ 29.289257] Download size: 22112 [ 29.292597] Parsing tailer region 1 [ 29.296081] Target address: 0x47d80000 [ 29.299911] Download size: 86960 [ 29.303301] Parsing tailer region 2 [ 29.306785] Target address: 0x47dc0000 [ 29.310615] Download size: 2345040 [ 29.316297] warp_fwdl_ready_check_mcu_mode(): waiting for wocpu [ 29.338092] warp_fwdl_ready_check_mcu_mode(): wocpu is ready [ 29.343761] warp_woctrl_init_state(), wo_state: WO_STATE_ENABLE [ 29.349686] wo_proc_init done 00000000f70389d7 [ 29.354214] wo_exep_proc_init done 00000000f70389d7 [ 29.359203] wo_exception_init(0): exp log= 0x00000000df78317c, phy_addr= 0x0000000054a08000 size= 32768 [ 29.467375] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS0 PhyMode=78 [ 29.473990] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS1 PhyMode=78 [ 29.480603] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS2 PhyMode=78 [ 29.487212] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS3 PhyMode=78 [ 29.493822] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS4 PhyMode=78 [ 29.500430] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS5 PhyMode=78 [ 29.507038] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS6 PhyMode=78 [ 29.513648] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS7 PhyMode=78 [ 29.520260] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS8 PhyMode=177 [ 29.526956] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS9 PhyMode=177 [ 29.533651] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS10 PhyMode=177 [ 29.540433] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS11 PhyMode=177 [ 29.547215] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS12 PhyMode=177 [ 29.553996] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS13 PhyMode=177 [ 29.560778] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS14 PhyMode=177 [ 29.567564] 7981@C12L1,RTMPWirelessModeCfg() 607: Init: BSS15 PhyMode=177 [ 29.574666] 7981@C23L3,auto_ch_select_set_cfg() 3451: BandIdx0, AutoChannelAtBootup=0, AutoChannelAlg = 0 [ 29.584225] 7981@C23L3,auto_ch_select_set_cfg() 3451: BandIdx1, AutoChannelAtBootup=0, AutoChannelAlg = 0 [ 29.681974] 7981@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=0, Desired MFPC=1 [ 29.689363] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=1, Desired MFPC=1 [ 29.696756] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=2, Desired MFPC=1 [ 29.704146] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=3, Desired MFPC=1 [ 29.711540] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=4, Desired MFPC=1 [ 29.718932] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=5, Desired MFPC=1 [ 29.726321] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=6, Desired MFPC=1 [ 29.733713] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=7, Desired MFPC=1 [ 29.741105] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=8, Desired MFPC=1 [ 29.748494] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=9, Desired MFPC=1 [ 29.755887] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=10, Desired MFPC=1 [ 29.763365] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=11, Desired MFPC=1 [ 29.770841] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=12, Desired MFPC=1 [ 29.778318] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=13, Desired MFPC=1 [ 29.785798] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=14, Desired MFPC=1 [ 29.793306] WiFi@C15L1,Set_PMFMFPC_Proc() 1722: [PMF] :: apidx=15, Desired MFPC=1 [ 29.802868] WiFi@C12L1,RTMPSetProfileParameters() 8803: ra0, QoSMgmtCapa=0 [ 29.809739] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.816870] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.824005] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.831135] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.838265] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.845394] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.852525] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.859652] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.866783] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.873912] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.881040] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.888169] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.895299] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.902427] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.909558] WiFi@C12L1,RTMPSetProfileParameters() 8803: (null), QoSMgmtCapa=0 [ 29.932552] WiFi@C12L1,rtmp_read_ap_client_from_file() 1635: APCLI[0] ApCliMuMimoDlEnable = 0 [ 29.941067] WiFi@C12L1,rtmp_read_ap_client_from_file() 1635: APCLI[1] ApCliMuMimoDlEnable = 0 [ 29.949783] WiFi@C12L1,rtmp_read_ap_client_from_file() 1654: APCLI[0] ApCliMuMimoUlEnable = 0 [ 29.958297] WiFi@C12L1,rtmp_read_ap_client_from_file() 1654: APCLI[1] ApCliMuMimoUlEnable = 0 [ 29.968921] WiFi@C03L1,AndesSendCmdMsg() 754: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD [ 29.980129] WiFi@C03L2,AndesSendCmdMsg() 765: Command type = ed, Extension command type = 48 [ 29.988565] WiFi@C03L1,AndesSendCmdMsg() 754: Could not send in band command due to diablefRTMP_ADAPTER_MCU_SEND_IN_BAND_CMD [ 29.999772] WiFi@C03L2,AndesSendCmdMsg() 765: Command type = ed, Extension command type = 48 [ 30.100830] wdma_dma_ctrl(): WDMA_GLO_CFG=50404e70, txrx = 0 [ 30.110300] wdma_dma_ctrl(): WDMA_GLO_CFG=40404e70, txrx = 0 [ 30.124885] warp_tx_ring_init_hw(): configure ring 0 setting [ 30.130593] warp_tx_ring_init_hw(): wed:00000000868593d0 wifi:00000000be4103be: 24420=56850000,24424=2048,24428=0 [ 30.140851] warp_tx_ring_init_hw(): configure ring 1 setting [ 30.146505] warp_tx_ring_init_hw(): wed:00000000868593d0 wifi:00000000be4103be: 24430=5c660000,24434=2048,24438=0 [ 30.156875] set_rrocfg,0 [ 30.182277] wdma_dma_ctrl(): WDMA_GLO_CFG=40404e74, txrx = 3 [ 30.187929] using E1 ROM patch [ 30.190978] using E1 RAM [ 30.193504] current sync CR = 0x1 [ 30.196818] Built date: 20231228201236a [ 30.200743] Platform: ALPS [ 30.203534] HW/SW version: 0x8a108a10 [ 30.207284] Patch version: 0xffffffff [ 30.221367] current sync CR = 0x1 [ 30.224690] Chip ID: 0x14 [ 30.227396] Eco version: 0x00 [ 30.230449] Region number: 0x0b [ 30.233673] Format version: 0x02 [ 30.236979] Format flag: 0x01 [ 30.240029] Ram version: ____000000 [ 30.243607] Built date: 20231228201255 [ 30.247445] Common crc: 0xb19053d0 [ 30.250932] Release info: header tag = 0, total length = 64 [ 30.256587] tag 1, padding length = 1, tag length = 59 [ 30.261804] payload: t-neptune-main-mt7915-1953-MT7981_MP2111_IMP-20231228201156 [ 30.289601] Chip ID: 0x00 [ 30.292330] Eco version: 0x00 [ 30.295386] Region number: 0x03 [ 30.298612] Format version: 0x02 [ 30.301923] Format flag: 0x01 [ 30.304967] Ram version: DEV_000000 [ 30.308542] Built date: 20231228201757 [ 30.312382] Common crc: 0x9d94838d [ 30.315867] Release info: header tag = 0, total length = 0 [ 30.407515] current sync CR = 0x7 [ 30.410862] efuse_probe: efuse = deaddead [ 30.457878] WiFi@C02L1,is_cal_free_ic() 831: [a-die version:1] [ 32.812846] WiFi@C17L1,RTMPReadTxPwrPerRate() 450: (450): Don't Support this now! [ 32.820374] WiFi@C01L1,AntCfgInit() 3162: Not support for HIF_MT yet! [ 32.844529] ch_switch_monitor_state_machine_init:: enter [ 32.849874] ch_switch_monitor_cfg_reset:: enter [ 32.854413] ch_switch_monitor_cfg_reset:: enter [ 32.859308] WiFi@C17L1,tx_pwr_comp_init() 641: NotSupportYet! [ 32.865130] WiFi@C12L1,SCS_init() 880: INIT SCSEnable [0]= 1 [ 32.870799] WiFi@C12L1,SCS_init() 887: INIT SCSEnable [1]= 0 [ 32.876584] WiFi@C03L1,MtCmdSetMacTxRx() 10433: (ret = 0) [ 32.882090] WiFi@C03L1,MtCmdSetMacTxRx() 10433: (ret = 0) [ 32.887574] WiFi@C14L1,IPMacTable_init() 348: IPMacTable already inited! [ 32.914407] wdma_dma_ctrl(): WDMA_GLO_CFG=50804e75, txrx = 3 [ 32.920170] WiFi@C03L1,MtCmdSetMacTxRx() 10433: (ret = 0) [ 32.925684] WiFi@C03L1,MtCmdSetMacTxRx() 10433: (ret = 0) [ 32.931128] WiFi@C00L1,set_ack_timeout_mode_byband() 13554: CTS/ACK Timeout Range should between [0xFFFF:0]!! [ 32.941040] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13642: DAT config band(0) cck_timeout Fail! [ 32.949734] WiFi@C00L1,set_ack_timeout_mode_byband() 13554: CTS/ACK Timeout Range should between [0xFFFF:0]!! [ 32.959640] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13653: DAT config band(0) ofdm_timeout Fail! [ 32.968419] WiFi@C00L1,set_ack_timeout_mode_byband() 13554: CTS/ACK Timeout Range should between [0xFFFF:0]!! [ 32.978323] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13664: DAT config band(0) ofdma_timeout Fail! [ 32.987189] WiFi@C00L1,set_ack_timeout_mode_byband() 13554: CTS/ACK Timeout Range should between [0xFFFF:0]!! [ 32.997094] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13642: DAT config band(1) cck_timeout Fail! [ 33.005786] WiFi@C00L1,set_ack_timeout_mode_byband() 13554: CTS/ACK Timeout Range should between [0xFFFF:0]!! [ 33.015692] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13653: DAT config band(1) ofdm_timeout Fail! [ 33.024470] WiFi@C00L1,set_ack_timeout_mode_byband() 13554: CTS/ACK Timeout Range should between [0xFFFF:0]!! [ 33.034375] WiFi@C00L1,set_datcfg_ack_cts_timeout() 13664: DAT config band(1) ofdma_timeout Fail! [ 33.060147] WiFi@C00L2,dump_ht_cap() 29: Caller: dump_ht_cap+0x10/0x20 [mt_wifi] [ 33.069757] WiFi@C00L2,dump_ht_cap() 29: Caller: dump_ht_cap+0x10/0x20 [mt_wifi] [ 33.211838] :(op = 1) [ 33.219157] 7981@C00L1,FastPathCheckMIC() 1010: (ret = 0)(op:1) [ 33.225136] 7981@C00L2,red_tail_drop_init() 83: red_tail_drop_init: available token:8192, whnat_en:1 [ 33.234362] 7981@C00L1,MtCmdCr4RedSet() 914: MtCmdCr4RedSet: (ret = 0) [ 33.240929] 7981@C00L1,SendRedCmd() 1049: SendRedCmd:(ret = 1) [ 33.246984] 7981@C01L2,RTMP_COM_IoctlHandle() 1494: -> CMD_RTPRIV_IOCTL_VIRTUAL_INF_UP [ 33.255018] WiFi@C01L3,wifi_sys_open() 856: wdev idx = 0 [ 33.260708] 7981@C18L3,BuildChannelList() 507: [ 33.265295] 7981@C00L3,BuildChannelList() 537: BandIdx = 0, PhyMode = 78, ChListNum = 13: [ 33.273498] 7981@C14L1,vht80_channel_group() 1982: invalid ch_band 0 [ 33.279881] 7981@C14L1,vht160_channel_group() 2073: invalid ch_band 0 [ 33.286345] 7981@C14L1,vht80_channel_group() 1982: invalid ch_band 0 [ 33.292723] 7981@C14L1,vht160_channel_group() 2073: invalid ch_band 0 [ 33.299186] 7981@C14L1,vht80_channel_group() 1982: invalid ch_band 0 [ 33.305571] 7981@C14L1,vht160_channel_group() 2073: invalid ch_band 0 [ 33.312042] 7981@C14L1,vht80_channel_group() 1982: invalid ch_band 0 [ 33.318423] 7981@C14L1,vht160_channel_group() 2073: invalid ch_band 0 [ 33.324896] 7981@C14L1,vht80_channel_group() 1982: invalid ch_band 0 [ 33.331279] 7981@C14L1,vht160_channel_group() 2073: invalid ch_band 0 [ 33.337736] 7981@C14L1,vht80_channel_group() 1982: invalid ch_band 0 [ 33.344113] 7981@C14L1,vht160_channel_group() 2073: invalid ch_band 0 [ 33.350566] 7981@C14L1,vht80_channel_group() 1982: invalid ch_band 0 [ 33.356945] 7981@C14L1,vht160_channel_group() 2073: invalid ch_band 0 [ 33.363404] 7981@C14L1,vht80_channel_group() 1982: invalid ch_band 0 [ 33.369769] 7981@C14L1,vht160_channel_group() 2073: invalid ch_band 0 [ 33.376235] 7981@C14L1,vht80_channel_group() 1982: invalid ch_band 0 [ 33.382615] 7981@C14L1,vht160_channel_group() 2073: invalid ch_band 0 [ 33.389077] 7981@C14L1,vht80_channel_group() 1982: invalid ch_band 0 [ 33.395460] 7981@C14L1,vht160_channel_group() 2073: invalid ch_band 0 [ 33.401919] 7981@C14L1,vht80_channel_group() 1982: invalid ch_band 0 [ 33.408293] 7981@C14L1,vht160_channel_group() 2073: invalid ch_band 0 [ 33.414757] 7981@C14L1,vht80_channel_group() 1982: invalid ch_band 0 [ 33.421131] 7981@C14L1,vht160_channel_group() 2073: invalid ch_band 0 [ 33.427583] 7981@C14L1,vht80_channel_group() 1982: invalid ch_band 0 [ 33.433956] 7981@C14L1,vht160_channel_group() 2073: invalid ch_band 0 [ 33.440412] 7981@C23L1,DfsBuildChannelList() 4093: [RDM]: wdev is not 5G. [ 33.447260] 7981@C23L3,operate_loader_phy() 360: oper_cfg: prim_ch(1), ht_bw(1), extcha(1), vht_bw(0), cen_ch_2(0), PhyMode=78! [ 33.458763] 7981@C23L3,operate_loader_phy() 374: oper_dev after adjust: bw(1), prim_ch(1), cen_ch_1(3), cen_ch_2(0),ext_cha(1)! [ 33.470260] 7981@C23L3,operate_loader_phy() 393: oper_dev after decision: bw(1), prim_ch(1), cen_ch_1(3), cen_ch_2(0)! [ 33.480971] 7981@C23L3,DfsRadarChannelCheck() 3447: [DfsRadarChannelCheck]: wdev is not 5G [ 33.489258] 7981@C08L1,AsicSwitchChannel() 334: AsicSwitchChannel::bandIdx:0 ch_band:0 htbw:1 vht_bw:0 bw:1 extcha:1 [ 33.499795] 7981@C08L1,AsicSwitchChannel() 339: AsicSwitchChannel::primch:1 cench1:3 cench2:0 rxstream:2 ap_bw:0 apCenCh:0 Scan:0 [ 33.511557] 7981@C00L1,mt7981_apply_dpd_flatness_data() 624: eeprom 0x19a bit 0 is 0, do runtime cal [ 33.520748] 7981@C03L3,MtCmdChannelSwitch() 2644: ctrl_chl=1, ctrl_ch2=0, cent_ch=3 DBDCIdx=0, ChBand=0, BW=1, TXStream=2, RXStream=2, scan(0) [ 33.672913] 7981@C03L3,MtCmdSetTxRxPath() 2902: ctrl_chl=1, ctrl_ch2=0, cent_ch=3, RxPath=3, BandIdx=0, ChBand=0, BW=1,TXStream=2, RXStream=3, scan(0) [ 33.686629] 7981@C12L1,EDCCAInit() 21569: EDCCA compensation: uni_compensation=0, bw_compensation=0, final compensation=0 [ 33.697725] 7981@C23L3,DfsCacNormalStart() 3974: wdev is not 5G [ 33.703727] 7981@C23L3,DfsRadarChannelCheck() 3447: [DfsRadarChannelCheck]: wdev is not 5G [ 33.712285] WiFi@C00L2,dump_ht_cap() 29: Caller: wlan_operate_init+0xa4/0x148 [mt_wifi]

[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034] [ 0.000000] Linux version 6.12.87 (builder@buildhost) (aarch64-openwrt-linux-musl-gcc (OpenWrt GCC 14.3.0 r32933-4ccb782af7) 14.3.0, GNU ld (GNU Binutils) 2.44) #0 SMP Wed May 13 22:42:09 2026 [ 0.000000] Machine model: COMFAST CF-WR632AX [ 0.000000] OF: reserved mem: 0x0000000042ff0000..0x0000000042ffffff (64 KiB) map non-reusable ramoops@42ff0000 [ 0.000000] OF: reserved mem: 0x0000000043000000..0x000000004302ffff (192 KiB) nomap non-reusable secmon@43000000 [ 0.000000] OF: reserved mem: 0x0000000047c80000..0x0000000047d7ffff (1024 KiB) nomap non-reusable wmcpu-reserved@47c80000 [ 0.000000] OF: reserved mem: 0x0000000047d80000..0x0000000047dbffff (256 KiB) nomap non-reusable wo-emi@47d80000 [ 0.000000] OF: reserved mem: 0x0000000047dc0000..0x0000000047ffffff (2304 KiB) nomap non-reusable wo-data@47dc0000 [ 0.000000] Zone ranges: [ 0.000000] DMA [mem 0x0000000040000000-0x000000005fffffff] [ 0.000000] DMA32 empty [ 0.000000] Normal empty [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000040000000-0x0000000042ffffff] [ 0.000000] node 0: [mem 0x0000000043000000-0x000000004302ffff] [ 0.000000] node 0: [mem 0x0000000043030000-0x0000000047c7ffff] [ 0.000000] node 0: [mem 0x0000000047c80000-0x0000000047ffffff] [ 0.000000] node 0: [mem 0x0000000048000000-0x000000005fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000005fffffff] [ 0.000000] psci: probing for conduit method from DT. [ 0.000000] psci: PSCIv1.1 detected in firmware. [ 0.000000] psci: Using standard PSCI v0.2 function IDs [ 0.000000] psci: MIGRATE_INFO_TYPE not supported. [ 0.000000] psci: SMC Calling Convention v1.4 [ 0.000000] percpu: Embedded 20 pages/cpu s42584 r8192 d31144 u81920 [ 0.000000] pcpu-alloc: s42584 r8192 d31144 u81920 alloc=20*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [ 0.000000] Detected VIPT I-cache on CPU0 [ 0.000000] CPU features: detected: GIC system register CPU interface [ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration [ 0.000000] alternatives: applying boot alternatives [ 0.000000] Kernel command line: [ 0.000000] Dentry cache hash table entries: 65536 (order: 7, 524288 bytes, linear) [ 0.000000] Inode-cache hash table entries: 32768 (order: 6, 262144 bytes, linear) [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 131072 [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [ 0.000000] software IO TLB: SWIOTLB bounce buffer size adjusted to 0MB [ 0.000000] software IO TLB: area num 2. [ 0.000000] software IO TLB: mapped [mem 0x000000005fd6a000-0x000000005fdea000] (0MB) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1 [ 0.000000] rcu: Hierarchical RCU implementation. [ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=2. [ 0.000000] Tracing variant of Tasks RCU enabled. [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies. [ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=2 [ 0.000000] RCU Tasks Trace: Setting shift to 1 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=2. [ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0 [ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode [ 0.000000] GICv3: 640 SPIs implemented [ 0.000000] GICv3: 0 Extended SPIs implemented [ 0.000000] Root IRQ handler: 0xffffffc080010080 [ 0.000000] GICv3: GICv3 features: 16 PPIs [ 0.000000] GICv3: GICD_CTRL.DS=0, SCR_EL3.FIQ=0 [ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c080000 [ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention. [ 0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns [ 0.000000] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns [ 0.000078] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=130000) [ 0.000087] pid_max: default: 32768 minimum: 301 [ 0.003013] Mount-cache hash table entries: 1024 (order: 1, 8192 bytes, linear) [ 0.003022] Mountpoint-cache hash table entries: 1024 (order: 1, 8192 bytes, linear) [ 0.005161] cacheinfo: Unable to detect cache hierarchy for CPU 0 [ 0.006019] rcu: Hierarchical SRCU implementation. [ 0.006026] rcu: Max phase no-delay instances is 1000. [ 0.006207] Timer migration: 1 hierarchy levels; 8 children per group; 1 crossnode level [ 0.006433] smp: Bringing up secondary CPUs ... [ 0.006815] Detected VIPT I-cache on CPU1 [ 0.006866] GICv3: CPU1: found redistributor 1 region 0:0x000000000c0a0000 [ 0.006897] CPU1: Booted secondary processor 0x0000000001 [0x410fd034] [ 0.006986] smp: Brought up 1 node, 2 CPUs [ 0.006992] SMP: Total of 2 processors activated. [ 0.006994] CPU: All CPU(s) started at EL2 [ 0.006997] CPU features: detected: 32-bit EL0 Support [ 0.007001] CPU features: detected: CRC32 instructions [ 0.007027] alternatives: applying system-wide alternatives [ 0.007173] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching [ 0.007304] Memory: 494452K/524288K available (9536K kernel code, 992K rwdata, 1832K rodata, 448K init, 316K bss, 28016K reserved, 0K cma-reserved) [ 0.010510] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.010530] futex hash table entries: 512 (order: 3, 32768 bytes, linear) [ 0.010591] 29440 pages in range for non-PLT usage [ 0.010594] 520960 pages in range for PLT usage [ 0.012083] pinctrl core: initialized pinctrl subsystem [ 0.014473] NET: Registered PF_NETLINK/PF_ROUTE protocol family [ 0.014795] DMA: preallocated 128 KiB GFP_KERNEL pool for atomic allocations [ 0.014821] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations [ 0.014843] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations [ 0.015268] thermal_sys: Registered thermal governor 'fair_share' [ 0.015272] thermal_sys: Registered thermal governor 'bang_bang' [ 0.015276] thermal_sys: Registered thermal governor 'step_wise' [ 0.015278] thermal_sys: Registered thermal governor 'user_space' [ 0.015327] ASID allocator initialised with 65536 entries [ 0.016242] pstore: Using crash dump compression: deflate [ 0.016247] pstore: Registered ramoops as persistent store backend [ 0.016250] ramoops: using 0x10000@0x42ff0000, ecc: 0 [ 0.017903] /soc/interrupt-controller@c000000: Fixed dependency cycle(s) with /soc/interrupt-controller@c000000 [ 0.034755] cryptd: max_cpu_qlen set to 1000 [ 0.036334] SCSI subsystem initialized [ 0.036491] libata version 3.00 loaded. [ 0.038321] clocksource: Switched to clocksource arch_sys_counter [ 0.040837] NET: Registered PF_INET protocol family [ 0.040952] IP idents hash table entries: 8192 (order: 4, 65536 bytes, linear) [ 0.042384] tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 4096 bytes, linear) [ 0.042400] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) [ 0.042409] TCP established hash table entries: 4096 (order: 3, 32768 bytes, linear) [ 0.042440] TCP bind hash table entries: 4096 (order: 5, 131072 bytes, linear) [ 0.042544] TCP: Hash tables configured (established 4096 bind 4096) [ 0.042762] MPTCP token hash table entries: 512 (order: 2, 12288 bytes, linear) [ 0.042871] UDP hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.042893] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.043104] NET: Registered PF_UNIX/PF_LOCAL protocol family [ 0.043128] PCI: CLS 0 bytes, default 64 [ 0.044386] workingset: timestamp_bits=46 max_order=17 bucket_order=0 [ 0.049500] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.049508] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 0.105212] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251) [ 0.117323] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled [ 0.121043] printk: legacy console [ttyS0] disabled [ 0.141490] 11002000.serial: ttyS0 at MMIO 0x11002000 (irq = 72, base_baud = 2500000) is a ST16650V2 [ 0.141537] printk: legacy console [ttyS0] enabled [ 0.906883] random: crng init done [ 0.910633] loop: module loaded [ 0.916850] spi-nand spi0.0: calibration result: 0x3 [ 0.922085] spi-nand spi0.0: Winbond SPI NAND was found. [ 0.927391] spi-nand spi0.0: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 64 [ 0.935923] Signature found at block 1023 [0x07fe0000] [ 0.941082] NMBM management region starts at block 960 [0x07800000] [ 0.949213] First info table with writecount 0 found in block 960 [ 0.957928] Second info table with writecount 0 found in block 963 [ 0.964117] NMBM has been successfully attached [ 0.968886] 5 fixed-partitions partitions found on MTD device spi0.0 [ 0.975505] Creating 5 MTD partitions on "spi0.0": [ 0.980316] 0x000000000000-0x000000100000 : "BL2" [ 0.986085] 0x000000100000-0x000000180000 : "u-boot-env" [ 0.992289] 0x000000180000-0x000000380000 : "Factory" [ 0.999375] 0x000000380000-0x000000580000 : "FIP" [ 1.005773] 0x000000580000-0x000004580000 : "ubi" [ 1.049254] ubi0: default fastmap pool size: 25 [ 1.053794] ubi0: default fastmap WL pool size: 12 [ 1.058594] ubi0: attaching mtd4 [ 1.287392] ubi0: scanning is finished [ 1.295927] ubi0: attached mtd4 (name "ubi", size 64 MiB) [ 1.301355] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 1.308218] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 1.314998] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 1.321952] ubi0: good PEBs: 512, bad PEBs: 0, corrupted PEBs: 0 [ 1.327947] ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128 [ 1.335160] ubi0: max/mean erase counter: 12/8, WL threshold: 4096, image sequence number: 873585924 [ 1.344287] ubi0: available PEBs: 1, total reserved PEBs: 511, PEBs reserved for bad PEB handling: 19 [ 1.353509] ubi0: background thread "ubi_bgt0d" started, PID 270 [ 1.360185] block ubiblock0_1: created from ubi0:1(rootfs) [ 1.365676] ubiblock: device ubiblock0_1 (rootfs) set to be root filesystem [ 1.541342] Maxlinear Ethernet GPY211C mdio-bus:05: Firmware Version: 8.111 (0x886F) [ 1.553537] mtk_soc_eth 15100000.ethernet eth0: mediatek frame engine at 0xffffffc081980000, irq 75 [ 1.563461] mtk_soc_eth 15100000.ethernet eth1: mediatek frame engine at 0xffffffc081980000, irq 75 [ 1.573374] i2c_dev: i2c /dev entries driver [ 1.579445] mtk-wdt 1001c000.watchdog: Watchdog enabled (timeout=31 sec, nowayout=0) [ 1.588295] NET: Registered PF_INET6 protocol family [ 1.594185] Segment Routing with IPv6 [ 1.597874] In-situ OAM (IOAM) with IPv6 [ 1.601878] NET: Registered PF_PACKET protocol family [ 1.606952] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this. [ 1.620266] 8021q: 802.1Q VLAN Support v1.8 [ 1.644339] phy phy-soc:usb-phy@11e10000.1: type_sw - reg 0x218, index 0 [ 1.651994] clk: Disabling unused clocks [ 1.656199] PM: genpd: Disabling unused power domains [ 1.665339] VFS: Mounted root (squashfs filesystem) readonly on device 254:0. [ 1.672734] Freeing unused kernel memory: 448K [ 1.678406] Run /sbin/init as init process [ 1.682509] with arguments: [ 1.685464] /sbin/init [ 1.688159] with environment: [ 1.691306] HOME=/ [ 1.693655] TERM=linux [ 1.873563] init: Console is alive [ 1.877101] init: - watchdog - [ 2.249325] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 2.269774] usbcore: registered new interface driver usbfs [ 2.275301] usbcore: registered new interface driver hub [ 2.280679] usbcore: registered new device driver usb [ 2.286453] gpio_button_hotplug: loading out-of-tree module taints kernel. [ 2.298241] xhci-mtk 11200000.usb: supply vbus not found, using dummy regulator [ 2.306402] xhci-mtk 11200000.usb: xHCI Host Controller [ 2.311676] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 1 [ 2.322084] xhci-mtk 11200000.usb: hcc params 0x01403f99 hci version 0x110 quirks 0x0000000000200010 [ 2.331256] xhci-mtk 11200000.usb: irq 79, io mem 0x11200000 [ 2.337011] xhci-mtk 11200000.usb: xHCI Host Controller [ 2.342269] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 2 [ 2.349667] xhci-mtk 11200000.usb: Host supports USB 3.2 Enhanced SuperSpeed [ 2.357164] hub 1-0:1.0: USB hub found [ 2.360961] hub 1-0:1.0: 1 port detected [ 2.365193] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM. [ 2.373664] hub 2-0:1.0: USB hub found [ 2.377440] hub 2-0:1.0: 1 port detected [ 2.386035] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 2.396492] init: - preinit - [ 2.702443] mtk_soc_eth 15100000.ethernet wan: renamed from eth0 [ 2.711579] mtk_soc_eth 15100000.ethernet lan: renamed from eth1 [ 7.063900] UBIFS (ubi0:2): default file-system created [ 7.069577] UBIFS (ubi0:2): Mounting in unauthenticated mode [ 7.075339] UBIFS (ubi0:2): background thread "ubifs_bgt0_2" started, PID 773 [ 7.117543] UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name "rootfs_data" [ 7.125397] UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 7.135309] UBIFS (ubi0:2): FS size: 50663424 bytes (48 MiB, 399 LEBs), max 409 LEBs, journal size 2539520 bytes (2 MiB, 20 LEBs) [ 7.146955] UBIFS (ubi0:2): reserved for root: 2392958 bytes (2336 KiB) [ 7.153563] UBIFS (ubi0:2): media format: w5/r0 (latest is w5/r0), UUID 74424F10-1936-4370-9887-F158AA9E2CFD, small LPT model [ 7.166276] mount_root: overlay filesystem has not been fully initialized yet [ 7.173753] mount_root: switching to ubifs overlay [ 7.182300] overlayfs: null uuid detected in lower fs '/', falling back to xino=off,index=off,nfs_export=off. [ 7.194175] urandom-seed: Seed file not found (/etc/urandom.seed) [ 7.246309] procd: - early - [ 7.249309] procd: - watchdog - [ 7.804082] procd: - watchdog - [ 7.814278] procd: - ubus - [ 7.892882] procd: - init - [ 8.173938] kmodloader: loading kernel modules from /etc/modules.d/* [ 8.206164] crypto-safexcel 10320000.crypto: EIP97:230(0,1,4,4)-HIA:270(0,5,5),PE:150/433(alg:7fcdfc00)/0/0/0 [ 8.243961] Loading modules backported from Linux version v6.18.26-0-g1fe060681 [ 8.251296] Backport generated by backports.git 6ecbb44 [ 8.411193] urngd: v1.0.2 started. [ 8.643479] mt798x-wmac 18000000.wifi: HW/SW Version: 0x8a108a10, Build Time: 20240823161240a [ 8.820810] mt798x-wmac 18000000.wifi: WM Firmware Version: ____000000, Build Time: 20240823161304 [ 8.914975] mt798x-wmac 18000000.wifi: WA Firmware Version: DEV_000000, Build Time: 20240823161841 [ 9.012746] mt798x-wmac 18000000.wifi: registering led 'mt76-phy0' [ 9.068531] mt798x-wmac 18000000.wifi: registering led 'mt76-phy1' [ 9.144960] PPP generic driver version 2.4.2 [ 9.150550] NET: Registered PF_PPPOX protocol family [ 9.159782] kmodloader: done loading kernel modules from /etc/modules.d/* [ 15.176010] mtk_soc_eth 15100000.ethernet lan: PHY [mdio-bus:00] driver [MediaTek MT7981 PHY] (irq=POLL) [ 15.189890] mtk_soc_eth 15100000.ethernet lan: configuring for phy/gmii link mode [ 15.220512] br-lan: port 1(lan) entered blocking state [ 15.225667] br-lan: port 1(lan) entered disabled state [ 15.239108] mtk_soc_eth 15100000.ethernet lan: entered allmulticast mode [ 15.246034] mtk_soc_eth 15100000.ethernet lan: entered promiscuous mode [ 15.263220] mtk_soc_eth 15100000.ethernet wan: PHY [mdio-bus:05] driver [Maxlinear Ethernet GPY211C] (irq=POLL) [ 15.273379] mtk_soc_eth 15100000.ethernet wan: configuring for phy/2500base-x link mode [ 19.368979] mtk_soc_eth 15100000.ethernet lan: Link is Up - 1Gbps/Full - flow control rx/tx [ 19.369008] br-lan: port 1(lan) entered blocking state [ 19.382469] br-lan: port 1(lan) entered forwarding state

COPY HERE THE BOOTLOG ONCE OPENWRT IS INSTALLED AND RUNNING

[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034] [ 0.000000] Linux version 6.12.87 (builder@buildhost) (aarch64-openwrt-linux-musl-gcc (OpenWrt GCC 14.3.0 r32912-6639b15f62) 14.3.0, GNU ld (GNU Binutils) 2.44) #0 SMP Wed May 13 22:42:09 2026 [ 0.000000] Machine model: COMFAST CF-WR632AX (UBI) [ 0.000000] OF: reserved mem: 0x0000000042ff0000..0x0000000042ffffff (64 KiB) map non-reusable ramoops@42ff0000 [ 0.000000] OF: reserved mem: 0x0000000043000000..0x000000004302ffff (192 KiB) nomap non-reusable secmon@43000000 [ 0.000000] OF: reserved mem: 0x0000000047c80000..0x0000000047d7ffff (1024 KiB) nomap non-reusable wmcpu-reserved@47c80000 [ 0.000000] OF: reserved mem: 0x0000000047d80000..0x0000000047dbffff (256 KiB) nomap non-reusable wo-emi@47d80000 [ 0.000000] OF: reserved mem: 0x0000000047dc0000..0x0000000047ffffff (2304 KiB) nomap non-reusable wo-data@47dc0000 [ 0.000000] Zone ranges: [ 0.000000] DMA [mem 0x0000000040000000-0x000000005fffffff] [ 0.000000] DMA32 empty [ 0.000000] Normal empty [ 0.000000] Movable zone start for each node [ 0.000000] Early memory node ranges [ 0.000000] node 0: [mem 0x0000000040000000-0x0000000042ffffff] [ 0.000000] node 0: [mem 0x0000000043000000-0x000000004302ffff] [ 0.000000] node 0: [mem 0x0000000043030000-0x0000000047c7ffff] [ 0.000000] node 0: [mem 0x0000000047c80000-0x0000000047ffffff] [ 0.000000] node 0: [mem 0x0000000048000000-0x000000005fffffff] [ 0.000000] Initmem setup node 0 [mem 0x0000000040000000-0x000000005fffffff] [ 0.000000] psci: probing for conduit method from DT. [ 0.000000] psci: PSCIv1.1 detected in firmware. [ 0.000000] psci: Using standard PSCI v0.2 function IDs [ 0.000000] psci: MIGRATE_INFO_TYPE not supported. [ 0.000000] psci: SMC Calling Convention v1.5 [ 0.000000] percpu: Embedded 20 pages/cpu s42584 r8192 d31144 u81920 [ 0.000000] pcpu-alloc: s42584 r8192 d31144 u81920 alloc=20*4096 [ 0.000000] pcpu-alloc: [0] 0 [0] 1 [ 0.000000] Detected VIPT I-cache on CPU0 [ 0.000000] CPU features: detected: GIC system register CPU interface [ 0.000000] CPU features: kernel page table isolation disabled by kernel configuration [ 0.000000] alternatives: applying boot alternatives [ 0.000000] Kernel command line: root=/dev/fit0 rootwait [ 0.000000] Dentry cache hash table entries: 65536 (order: 7, 524288 bytes, linear) [ 0.000000] Inode-cache hash table entries: 32768 (order: 6, 262144 bytes, linear) [ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 131072 [ 0.000000] mem auto-init: stack:off, heap alloc:off, heap free:off [ 0.000000] software IO TLB: SWIOTLB bounce buffer size adjusted to 0MB [ 0.000000] software IO TLB: area num 2. [ 0.000000] software IO TLB: mapped [mem 0x000000005f540000-0x000000005f5c0000] (0MB) [ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=2, Nodes=1 [ 0.000000] rcu: Hierarchical RCU implementation. [ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=4 to nr_cpu_ids=2. [ 0.000000] Tracing variant of Tasks RCU enabled. [ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies. [ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=2 [ 0.000000] RCU Tasks Trace: Setting shift to 1 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=2. [ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0 [ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode [ 0.000000] GICv3: 640 SPIs implemented [ 0.000000] GICv3: 0 Extended SPIs implemented [ 0.000000] Root IRQ handler: 0xffffffc080010080 [ 0.000000] GICv3: GICv3 features: 16 PPIs [ 0.000000] GICv3: GICD_CTRL.DS=0, SCR_EL3.FIQ=0 [ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x000000000c080000 [ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention. [ 0.000000] arch_timer: cp15 timer(s) running at 13.00MHz (phys). [ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x2ff89eacb, max_idle_ns: 440795202429 ns [ 0.000000] sched_clock: 56 bits at 13MHz, resolution 76ns, wraps every 4398046511101ns [ 0.000081] Calibrating delay loop (skipped), value calculated using timer frequency.. 26.00 BogoMIPS (lpj=130000) [ 0.000089] pid_max: default: 32768 minimum: 301 [ 0.003009] Mount-cache hash table entries: 1024 (order: 1, 8192 bytes, linear) [ 0.003019] Mountpoint-cache hash table entries: 1024 (order: 1, 8192 bytes, linear) [ 0.005137] cacheinfo: Unable to detect cache hierarchy for CPU 0 [ 0.005982] rcu: Hierarchical SRCU implementation. [ 0.005990] rcu: Max phase no-delay instances is 1000. [ 0.006170] Timer migration: 1 hierarchy levels; 8 children per group; 1 crossnode level [ 0.006399] smp: Bringing up secondary CPUs ... [ 0.006774] Detected VIPT I-cache on CPU1 [ 0.006827] GICv3: CPU1: found redistributor 1 region 0:0x000000000c0a0000 [ 0.006857] CPU1: Booted secondary processor 0x0000000001 [0x410fd034] [ 0.006946] smp: Brought up 1 node, 2 CPUs [ 0.006951] SMP: Total of 2 processors activated. [ 0.006954] CPU: All CPU(s) started at EL2 [ 0.006956] CPU features: detected: 32-bit EL0 Support [ 0.006960] CPU features: detected: CRC32 instructions [ 0.006987] alternatives: applying system-wide alternatives [ 0.007121] CPU features: emulated: Privileged Access Never (PAN) using TTBR0_EL1 switching [ 0.007255] Memory: 494452K/524288K available (9536K kernel code, 992K rwdata, 1832K rodata, 448K init, 316K bss, 28016K reserved, 0K cma-reserved) [ 0.010537] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns [ 0.010557] futex hash table entries: 512 (order: 3, 32768 bytes, linear) [ 0.010617] 29440 pages in range for non-PLT usage [ 0.010620] 520960 pages in range for PLT usage [ 0.012107] pinctrl core: initialized pinctrl subsystem [ 0.014505] NET: Registered PF_NETLINK/PF_ROUTE protocol family [ 0.014858] DMA: preallocated 128 KiB GFP_KERNEL pool for atomic allocations [ 0.014886] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations [ 0.014907] DMA: preallocated 128 KiB GFP_KERNEL|GFP_DMA32 pool for atomic allocations [ 0.015332] thermal_sys: Registered thermal governor 'fair_share' [ 0.015336] thermal_sys: Registered thermal governor 'bang_bang' [ 0.015339] thermal_sys: Registered thermal governor 'step_wise' [ 0.015341] thermal_sys: Registered thermal governor 'user_space' [ 0.015407] ASID allocator initialised with 65536 entries [ 0.016329] pstore: Using crash dump compression: deflate [ 0.016335] pstore: Registered ramoops as persistent store backend [ 0.016337] ramoops: using 0x10000@0x42ff0000, ecc: 0 [ 0.018009] /soc/interrupt-controller@c000000: Fixed dependency cycle(s) with /soc/interrupt-controller@c000000 [ 0.034993] cryptd: max_cpu_qlen set to 1000 [ 0.036484] SCSI subsystem initialized [ 0.036647] libata version 3.00 loaded. [ 0.038523] clocksource: Switched to clocksource arch_sys_counter [ 0.040778] NET: Registered PF_INET protocol family [ 0.040903] IP idents hash table entries: 8192 (order: 4, 65536 bytes, linear) [ 0.042335] tcp_listen_portaddr_hash hash table entries: 256 (order: 0, 4096 bytes, linear) [ 0.042350] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear) [ 0.042361] TCP established hash table entries: 4096 (order: 3, 32768 bytes, linear) [ 0.042392] TCP bind hash table entries: 4096 (order: 5, 131072 bytes, linear) [ 0.042492] TCP: Hash tables configured (established 4096 bind 4096) [ 0.042709] MPTCP token hash table entries: 512 (order: 2, 12288 bytes, linear) [ 0.042818] UDP hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.042835] UDP-Lite hash table entries: 256 (order: 1, 8192 bytes, linear) [ 0.043034] NET: Registered PF_UNIX/PF_LOCAL protocol family [ 0.043059] PCI: CLS 0 bytes, default 64 [ 0.044251] workingset: timestamp_bits=46 max_order=17 bucket_order=0 [ 0.049373] squashfs: version 4.0 (2009/01/31) Phillip Lougher [ 0.049381] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc. [ 0.105556] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 251) [ 0.117191] Serial: 8250/16550 driver, 16 ports, IRQ sharing enabled [ 0.121044] printk: legacy console [ttyS0] disabled [ 0.141438] 11002000.serial: ttyS0 at MMIO 0x11002000 (irq = 72, base_baud = 2500000) is a ST16650V2 [ 0.141484] printk: legacy console [ttyS0] enabled [ 0.909118] random: crng init done [ 0.915987] loop: module loaded [ 0.922423] spi-nand spi0.0: calibration result: 0x3 [ 0.927494] spi-nand spi0.0: Winbond SPI NAND was found. [ 0.932836] spi-nand spi0.0: 128 MiB, block size: 128 KiB, page size: 2048, OOB size: 64 [ 0.941410] 2 fixed-partitions partitions found on MTD device spi0.0 [ 0.948047] Creating 2 MTD partitions on "spi0.0": [ 0.952969] 0x000000000000-0x000000100000 : "BL2" [ 0.959225] 0x000000100000-0x000008000000 : "ubi" [ 1.042947] ubi0: default fastmap pool size: 50 [ 1.047482] ubi0: default fastmap WL pool size: 25 [ 1.052294] ubi0: attaching mtd1 [ 1.460790] ubi0: scanning is finished [ 1.470268] ubi0: attached mtd1 (name "ubi", size 127 MiB) [ 1.475759] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes [ 1.482641] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048 [ 1.489426] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096 [ 1.496374] ubi0: good PEBs: 1016, bad PEBs: 0, corrupted PEBs: 0 [ 1.502468] ubi0: user volume: 7, internal volumes: 1, max. volumes count: 128 [ 1.509684] ubi0: max/mean erase counter: 10/6, WL threshold: 4096, image sequence number: 100416571 [ 1.518810] ubi0: available PEBs: 0, total reserved PEBs: 1016, PEBs reserved for bad PEB handling: 20 [ 1.528108] ubi0: background thread "ubi_bgt0d" started, PID 263 [ 1.534975] block ubiblock0_5: created from ubi0:5(fit) [ 1.711544] Maxlinear Ethernet GPY211C mdio-bus:05: Firmware Version: 8.111 (0x886F) [ 1.723806] mtk_soc_eth 15100000.ethernet eth0: mediatek frame engine at 0xffffffc081980000, irq 75 [ 1.733727] mtk_soc_eth 15100000.ethernet eth1: mediatek frame engine at 0xffffffc081980000, irq 75 [ 1.743616] i2c_dev: i2c /dev entries driver [ 1.749654] mtk-wdt 1001c000.watchdog: Watchdog enabled (timeout=31 sec, nowayout=0) [ 1.781032] NET: Registered PF_INET6 protocol family [ 1.786911] Segment Routing with IPv6 [ 1.790631] In-situ OAM (IOAM) with IPv6 [ 1.794592] NET: Registered PF_PACKET protocol family [ 1.799716] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this. [ 1.812981] 8021q: 802.1Q VLAN Support v1.8 [ 1.835845] phy phy-soc:usb-phy@11e10000.1: type_sw - reg 0x218, index 0 [ 1.843916] FIT: Detected U-Boot 2025.10-OpenWrt-r32802-f505120278 [ 1.850134] FIT: Selected configuration: "config-1" (OpenWrt comfast_cf-wr632ax-ubi) [ 1.857878] FIT: kernel sub-image 0x00001000..0x0059c73e "kernel-1" (ARM64 OpenWrt Linux-6.12.87) [ 1.867728] FIT: flat_dt sub-image 0x0059d000..0x005a2be7 "fdt-1" (ARM64 OpenWrt comfast_cf-wr632ax-ubi device tree blob) [ 1.879564] FIT: filesystem sub-image 0x005a3000..0x01aeafff "rootfs-1" (ARM64 OpenWrt comfast_cf-wr632ax-ubi rootfs) [ 1.891308] block ubiblock0_5: mapped 1 uImage.FIT filesystem sub-image as /dev/fit0 [ 1.900757] clk: Disabling unused clocks [ 1.904962] PM: genpd: Disabling unused power domains [ 1.913272] VFS: Mounted root (squashfs filesystem) readonly on device 259:0. [ 1.920643] Freeing unused kernel memory: 448K [ 1.925140] Run /sbin/init as init process [ 1.929246] with arguments: [ 1.932202] /sbin/init [ 1.934897] with environment: [ 1.938026] HOME=/ [ 1.940387] TERM=linux [ 2.126092] init: Console is alive [ 2.129681] init: - watchdog - [ 2.516510] kmodloader: loading kernel modules from /etc/modules-boot.d/* [ 2.548204] usbcore: registered new interface driver usbfs [ 2.553759] usbcore: registered new interface driver hub [ 2.559121] usbcore: registered new device driver usb [ 2.564906] gpio_button_hotplug: loading out-of-tree module taints kernel. [ 2.576637] xhci-mtk 11200000.usb: supply vbus not found, using dummy regulator [ 2.584796] xhci-mtk 11200000.usb: xHCI Host Controller [ 2.590076] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 1 [ 2.600462] xhci-mtk 11200000.usb: hcc params 0x01403f99 hci version 0x110 quirks 0x0000000000200010 [ 2.609663] xhci-mtk 11200000.usb: irq 79, io mem 0x11200000 [ 2.615415] xhci-mtk 11200000.usb: xHCI Host Controller [ 2.620648] xhci-mtk 11200000.usb: new USB bus registered, assigned bus number 2 [ 2.628040] xhci-mtk 11200000.usb: Host supports USB 3.2 Enhanced SuperSpeed [ 2.635525] hub 1-0:1.0: USB hub found [ 2.639326] hub 1-0:1.0: 1 port detected [ 2.643552] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM. [ 2.652073] hub 2-0:1.0: USB hub found [ 2.655852] hub 2-0:1.0: 1 port detected [ 2.664263] kmodloader: done loading kernel modules from /etc/modules-boot.d/* [ 2.674876] init: - preinit - [ 2.995267] mtk_soc_eth 15100000.ethernet wan: renamed from eth0 [ 3.004116] mtk_soc_eth 15100000.ethernet lan: renamed from eth1 [ 7.539222] UBIFS (ubi0:6): Mounting in unauthenticated mode [ 7.544993] UBIFS (ubi0:6): background thread "ubifs_bgt0_6" started, PID 771 [ 7.566693] UBIFS (ubi0:6): recovery needed [ 7.618005] UBIFS (ubi0:6): recovery completed [ 7.622543] UBIFS (ubi0:6): UBIFS: mounted UBI device 0, volume 6, name "rootfs_data" [ 7.630377] UBIFS (ubi0:6): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes [ 7.640284] UBIFS (ubi0:6): FS size: 85327872 bytes (81 MiB, 672 LEBs), max 683 LEBs, journal size 4317184 bytes (4 MiB, 34 LEBs) [ 7.651928] UBIFS (ubi0:6): reserved for root: 4030245 bytes (3935 KiB) [ 7.658542] UBIFS (ubi0:6): media format: w5/r0 (latest is w5/r0), UUID EE854DAA-BFEE-42FD-9D3B-31883AA3FE22, small LPT model [ 7.673506] mount_root: switching to ubifs overlay [ 7.683273] overlayfs: null uuid detected in lower fs '/', falling back to xino=off,index=off,nfs_export=off. [ 7.697988] urandom-seed: Seeding with /etc/urandom.seed [ 7.749454] procd: - early - [ 7.752402] procd: - watchdog - [ 8.297655] procd: - watchdog - [ 8.302143] procd: - ubus - [ 8.458666] procd: - init - [ 9.099274] kmodloader: loading kernel modules from /etc/modules.d/* [ 9.257532] urngd: v1.0.2 started. [ 9.432937] NET: Registered PF_ALG protocol family [ 9.445142] zram: Added device: zram0 [ 9.451002] cryptodev: driver 1.14 loaded. [ 9.460432] crypto-safexcel 10320000.crypto: EIP97:230(0,1,4,4)-HIA:270(0,5,5),PE:150/433(alg:7fcdfc00)/0/0/0 [ 9.477471] Loading modules backported from Linux version v6.18.26-0-g1fe060681 [ 9.484814] Backport generated by backports.git 6ecbb44 [ 9.893675] mt798x-wmac 18000000.wifi: HW/SW Version: 0x8a108a10, Build Time: 20240823161240a [ 10.071696] mt798x-wmac 18000000.wifi: WM Firmware Version: ____000000, Build Time: 20240823161304 [ 10.164345] mt798x-wmac 18000000.wifi: WA Firmware Version: DEV_000000, Build Time: 20240823161841 [ 10.261420] mt798x-wmac 18000000.wifi: registering led 'mt76-phy0' [ 10.320743] mt798x-wmac 18000000.wifi: registering led 'mt76-phy1' [ 10.420277] kmodloader: done loading kernel modules from /etc/modules.d/*
