Sercomm MTS S1010 (aka MTS F104)
The dual-band Wi-Fi router is designed for connecting to the Home Internet via a dedicated Ethernet line.
Alternative names
Beeline SmartBox ONE / МТС S1010 / Дом.ru S1010.ER / WIFIRE S1010.NBN
Options
| Operating modes | DHCP client, Static IP, L2TP |
|---|---|
| Wi-Fi | 802.11b/g/n 300Mbps, 2.4GHz and 5GHz Dual Band, Guest Wi-Fi |
| WAN/LAN | Fast Ethernet LAN and WAN ports – maximum throughput of 100 Mbps |
| USB port | Yes, 1 USB 2.0 |
| IPTV support | Yes, dedicated LAN port and IGMP proxy |
| Power | 12 VDC, 1 A |
| CPU1 | Realtek RTL8197DL (700 MHz) |
| FLA1 | 16 MiB (Macronix MX25L12835FMI-10G) |
| RAM1 | 64 MiB (Nanya NT5TU32M16EG-AC) |
| Expansion IFs | USB 2.0 |
| USB ports | 1 |
| WiFi1 chip1 | Realtek RTL8192ER |
| WiFi1 802dot11 protocols | bgn |
| WiFi1 MIMO config | 2×2:2 |
| WiFi2 chip1 | Realtek RTL8812AR |
| WiFi2 802dot11 protocols | an+ac |
| WiFi2 MIMO config | 2×2:2 |
| ETH chip1 | Realtek RTL8197DL |
| Switch | Realtek RTL8197DL |
| LAN speed | 10/100 |
| LAN ports | 4 |
| WAN speed | 10/100 |
| WAN ports | 1 |
OpenWrt support
Not supported.
Hardware highlights
| CPU | Ram | Flash | Network | WLAN | USB | Serial | JTag |
|---|---|---|---|---|---|---|---|
| Realtek RTL8197DL @ 700 MHz | 64 MiB | 16 MiB | 4x 10/100 | bgn | 1x 2.0 | Yes | ? |
Hardware
Info
| Architecture | Lexra |
|---|---|
| Vendor | Sercomm |
| Bootloader | ? |
| System-On-Chip | EXAMPLE Ralink RT3052 - MIPS 24K V4.12 |
| CPU/Speed | Realtek RTL8197DL 700 MHz |
| Flash-Chip | Macronix MX25L12835FMI-10G |
| Flash size | 16 MiB |
| RAM | Nanya NT5TU32M16EG-AC 64 MiB |
| Wireless | Realtek RTL8192ER/RTL8812AR Wi-Fi 802.11b/g/n 300Mbps, 2.4GHz/5GHz |
| Ethernet | Realtek RTL8197DL 10/100 Mbit/s |
| Switch | Realtek RTL8197DL |
| USB | 1x 2.0 |
| JTAG | No |
| Uart | J26 –> GND – Tx – Vcc – Rx, speed: 38400 – 8 – n - 1 |

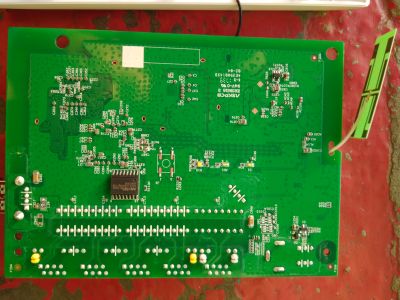

Photos
Opening the case
Unscrew the 2 screws under the rubber bands at the base of the case and use a flat tool to separate the halves of the case (use latches).
Serial
→ port.serial general information about the serial port, serial port cable, etc.
How to connect to the Serial Port of this specific device:

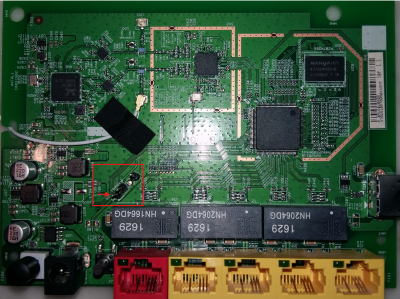

J26 –> From point: GND – Tx – Vcc – Rx
| Connection parameters | 38400 – 8 – n - 1 |
|---|
JTAG
→ port.jtag general information about the JTAG port, JTAG cable, etc.
How to connect to the JTAG Port of this specific device:
Insert photo of PCB with markings for JTAG port
Bootlogs
OEM bootlog
Booting...
---RealTek(RTL8196D)at 2015.10.09-11:19+0800 v1.4 [16bit](659MHz)
***************************************************
Sercomm Boot Version 1.0.2.0
***************************************************
Entering Firmware : Everything is OK.
To Sercomm Dual image
load_address:0x00610110....
Jump to image start=0x80500000...
decompressing kernel:
Uncompressing Linux... done, booting the kernel.
done decompressing kernel.
start address: 0x80003470
CPU revision is: 0000dc02
Determined physical RAM map:
memory: 04000000 @ 00000000 (usable)
Zone PFN ranges:
Normal 0x00000000 -> 0x00004000
Movable zone start PFN for each node
early_node_map[1] active PFN ranges
0: 0x00000000 -> 0x00004000
Built 1 zonelists in Zone order, mobility grouping on. Total pages: 16256
Kernel command line: console=ttyS0,38400 root=/dev/mtdblock6
icache: 64kB/32B, dcache: 32kB/32B, scache: 0kB/0B
NR_IRQS:48
PID hash table entries: 256 (order: 8, 1024 bytes)
console handover: boot [early0] -> real [ttyS0]
Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
Memory: 54976k/65536k available (3625k kernel code, 10484k reserved, 1332k data, 116k init, 0k highmem)
Calibrating delay loop... 658.63 BogoMIPS (lpj=3293184)
Mount-cache hash table entries: 512
net_namespace: 740 bytes
NET: Registered protocol family 16
bio: create slab <bio-0> at 0
SCSI subsystem initialized
usbcore: registered new interface driver usbfs
usbcore: registered new interface driver hub
usbcore: registered new device driver usb
NET: Registered protocol family 2
IP route cache hash table entries: 1024 (order: 0, 4096 bytes)
TCP established hash table entries: 2048 (order: 2, 16384 bytes)
TCP bind hash table entries: 2048 (order: 1, 8192 bytes)
TCP: Hash tables configured (established 2048 bind 2048)
TCP reno registered
NET: Registered protocol family 1
squashfs: version 4.0 (2009/01/31) Phillip Lougher
NTFS driver 2.1.29 [Flags: R/W].
fuse init (API version 7.11)
msgmni has been set to 107
io scheduler noop registered
io scheduler cfq registered (default)
Realtek GPIO Driver for Flash Reload Default
Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled
serial8250: ttyS0 at MMIO 0x18002000 (irq = 8) is a 16550A
Driver 'sd' needs updating - please use bus_type methods
PPP generic driver version 2.4.2
MPPE/MPPC encryption/compression module registered
NET: Registered protocol family 24
Realtek WLAN driver - version 1.6 (2013-02-21)(SVN:1768)
DFS function - version 1.0.23
Adaptivity function - version 7.1
98 - 25MHz Clock Source
Find Port=0 Device:Vender ID=818b10ec
98 - 25MHz Clock Source
Find Port=1 Device:Vender ID=881210ec
Probing RTL8186 10/100 NIC-kenel stack size order[3]...
chip name: 8196C, chip revid: 0
NOT YET
Start to initiate QM
INIT swCore descriptor count Failed : (0 [0])
Netlink[Kernel] create socket for hw qos config ok.
eth0 added. vid=9 Member port 0x11e...
eth1 added. vid=8 Member port 0x1...
[peth0] added, mapping to [eth1]...
SPI INIT
------------------------- Force into Single IO Mode ------------------------
|No chipID Sft chipSize blkSize secSize pageSize sdCk opCk chipName |
| 0 c22018h 0h 1000000h 10000h 1000h 100h 50 0 MX25L12805D/45E|
----------------------------------------------------------------------------
SPI flash(MX25L12805D/45E) was found at CS0, size 0x1000000
ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
b8021000=10000001
b8021054=200000
reg e0=99
reg e1=ac
reg e2=98
reg e3=c1
reg e4=1
reg e5=89
reg e6=98
reg e7=1d
reg f0=fc
reg f1=8c
reg f2=0
reg f3=11
reg f4=fb
reg f5=d2
reg f6=0
rtl8652-ehci rtl8652-ehci.0: RTL8652 On-Chip EHCI Host Controller
rtl8652-ehci rtl8652-ehci.0: new USB bus registered, assigned bus number 1
read synopsys=0
read synopsys2=0
rtl8652-ehci rtl8652-ehci.0: irq 10, io base 0x18021000
rtl8652-ehci rtl8652-ehci.0: USB 0.0 started, EHCI 1.00
usb usb1: New USB device found, idVendor=1d6b, idProduct=0002
usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
usb usb1: Product: RTL8652 On-Chip EHCI Host Controller
usb usb1: Manufacturer: Linux 2.6.30.9 ehci_hcd
usb usb1: SerialNumber: rtl8652-ehci.0
usb usb1: configuration #1 chosen from 1 choice
hub 1-0:1.0: USB hub found
hub 1-0:1.0: 1 port detected
ohci_hcd: USB 1.1 'Open' Host Controller (OHCI) Driver
rtl8652-ohci rtl8652-ohci.0: RTL8652 OHCI
rtl8652-ohci rtl8652-ohci.0: new USB bus registered, assigned bus number 2
rtl8652-ohci rtl8652-ohci.0: irq 10, io mem 0x18020000
usb usb2: New USB device found, idVendor=1d6b, idProduct=0001
usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
usb usb2: Product: RTL8652 OHCI
usb usb2: Manufacturer: Linux 2.6.30.9 ohci_hcd
usb usb2: SerialNumber: rtl8652
usb usb2: configuration #1 chosen from 1 choice
hub 2-0:1.0: USB hub found
hub 2-0:1.0: 1 port detected
nf_conntrack version 0.5.0 (1024 buckets, 4096 max)
CONFIG_NF_CT_ACCT is deprecated and will be removed soon. Please use
nf_conntrack.acct=1 kernel paramater, acct=1 nf_conntrack module option or
sysctl net.netfilter.nf_conntrack_acct=1 to enable it.
ip_tables: (C) 2000-2006 Netfilter Core Team
TCP cubic registered
NET: Registered protocol family 17
Bridge firewalling registered
Ebtables v2.0 registered
RPC: Registered udp transport module.
RPC: Registered tcp transport module.
802.1Q VLAN Support v1.8 Ben Greear <greearb@candelatech.com>
All bugs added by David S. Miller <davem@redhat.com>
Netlink[Kernel] create socket for igmp ok.
Realtek FastPath:v1.03
VFS: Mounted root (squashfs filesystem) readonly on device 31:6.
Freeing unused kernel memory: 116k freed
init started: BusyBox v1.15.3 ()
starting pid 686, tty '': '/etc/rcS'
NET: Registered protocol family 10
ip6_tables: (C) 2000-2006 Netfilter Core Team
sc_drv: module license 'Sercomm' taints kernel.
Disabling lock debugging due to kernel taint
/tmp/init_modules: line 55: can't create /proc/sys/net/ipv6/conf/default/use_tempaddr: nonexistent directory
ap_name=syslogd, action=start
init common module successful
insert firewall block module success
netfilter tcp syn flood module loaded
netfilter other dos module loaded
netfilter brdcstSrc dos module loaded
ap_name=dnrd, action=start
ap_name=phy, action=start
#######################################################
NUM_RX_PKTHDR_DESC= 1024, eth_skb_free_num= 1162
#######################################################
ap_name=lanip, action=start
ap_name=wlan, action=start
ap_name=firewall, action=start
ap_name=radvd, action=restart
lan interface=[br0], index=9
ifconfig: SIOCGIFFLAGS: No such device
ifconfig: SIOCGIFFLAGS: No such device
ifconfig: SIOCGIFFLAGS: No such device
Interface doesn't accept private ioctl...
set_mib (89F1): Operation not permitted
ConstructIE, dot11IEEE80211W=0
************* Initialize MAC/PHY parameter *************
[MAC_REG_8192Emp]
[PHY_REG_8192Emp]
[PHY_REG_PG_8192E_new]
[AGC_TAB_8192Emp]
RadioA_8192Emp
[RadioB_8192Emp]
[TXPWR_LMT_92EE_new]
ifconfig: SIOCGIFFLAGS: No such device
ifconfig: SIOCGIFFLAGS: No such device
ifconfig: SIOCGIFFLAGS: No such device
ifconfig: SIOCGIFFLAGS: No such device
ifconfig: SIOCGIFFLAGS: No such device
ifconfig: SIOCGIFFLAGS: No such device
Interface doesn't accept private ioctl...
set_mib (89F1): Operation not permitted
Jan/01/1970 00:00:27: dhcp6_ctl_authinit: failed to open /tmp/dhcp6sctlkey: No such file or directory
ConstructIE, dot11IEEE80211W=0
************* Initialize MAC/PHY parameter *************
[MAC_REG_8812_n]
[PHY_REG_8812_n_hp]
[PHY_REG_PG_8812_new]
[AGC_TAB_8812_n_hp]
[RadioA_8812_n_hp]
[RadioB_8812_n_hp]
[TXPWR_LMT_8812_new]
[REG_TXPWR_TRK_8812_hp]
ifconfig: SIOCGIFFLAGS: No such device
ifconfig: SIOCGIFFLAGS: No such device
ifconfig: SIOCGIFFLAGS: No such device
killall: acsd: no process killed
groupScore, ch 1,5: 6464
groupScore, ch 2,6: 7374
groupScore, ch 3,7: 6860
groupScore, ch 4,8: 8241
groupScore, ch 5,9: 9254
groupScore, ch 6,10: 7827
groupScore, ch 7,11: 7088
ap_name=redirect, action=start
ap_name=networkmap, action=start
ap_name=hw_nat, action=start
ap_name=dnrd, action=start
ap_name=qtbl, action=start
Insert quick routing module ...
######DUMP QUICK TABLE FUNC ADDR#######
skb_dev_in_qtl:c1ee69d0
CheckSumModify:c1ee6000
update_conntrack_time:c1ee700c
matchFromLan:c1ee704c
matchFromWan:c1ee7510
doMatch:c1ee7954
MyCheckSum:c1ee60bc
CheckSumDlt:c1ee610c
checkEntry:c1ee680c
delEntry:c1ee6348
addEntry:c1ee6410
checkValidQTEntry:c1ee62b0
updateQtlWhenPktXmit:c1ee6a64
qtbl_read_proc:c1ee7a54
qtbl_write_proc:c1ee7a04
######DUMP QUICK TABLE FUNC ADDR END#######
ap_name=qos, action=start
ap_name=qos_cls, action=start
Queue number set to QNUMCR register failed
Queue number set to QNUMCR register failed
Queue number set to QNUMCR register failed
ap_name=cpm, action=start
ap_name=wanip, action=stop
ap_name=dnrd, action=stop
ap_name=dnrd, action=stop
ap_name=igmp_proxy, action=stop
Wed Jan 27 14:58:04 UTC 2016
ap_name=httpd, action=start
ap_name=coredump, action=start
ap_name=srt, action=restart
bind: Address already in use
ap_name=rp, action=start
ap_name=udpecho, action=start
ap_name=ntp, action=start
ap_name=ingress_qos, action=start
ap_name=ingress_classify, action=start
ap_name=qos_remark, action=start
<6>Initializing USB Mass Storage driver...
ap_name=ipv6wd, action=start
ap_name=pppoe_relay, action=start
ap_name=telnetd, action=start
ap_name=sshd, action=start
ap_name=ftpd, action=start
ap_name=igd_upnp, action=start
ap_name=dnsr, action=start
ap_name=cron, action=start
Could not load host key: /etc/ssh/ssh_host_ecdsa_key
Could not load host key: /etc/ssh/ssh_host_ed25519_key
starting pid 1957
S1010 login:
OpenWrt bootlog
COPY HERE THE BOOTLOG ONCE OPENWRT IS INSTALLED AND RUNNING
